NEW Glacern Custom OP Quick Change Jaws
|
|
|
|
|
|
Reduce setup time with Custom OP Jaws!
Jaw changes getting tedious? We could all use a little quick change in our life and now you can bring this overpowered and underutilized feature to all Glacern 6" machine vises. Reduce cycle time by swapping out your repeatable carvable custom soft jaws in under 30 seconds.
If you're looking to overpower your vise setup, installing OP Jaws will let you quickly swap out your jaw plates. Have a bunch of soft jaws for different operations? Use our OP Jaws so you can spend more time making chips, and less time on setup changes. These jaws start as a block of 6061 aluminum and are machined and anodized.
OP Quick Change Jaws (pair)
IN STOCK // Intro Price
- Glacern OP Jaws let you equip any Glacern Vise with a Quick Change Jaw System
- Compatible with any 6 Inch Glacern Vise
- Perform jaw switches in under 30 seconds
- Allows you to change the jaw plate by loosening 3 clamps
- Workstop built-in for +/-0.001" loacating accuracy
- Machined flat and parallel within 0.002"
- 6061 aluminum
- Patent pending design
- Accepts Dovetail Jaws, buy them or make your own
- Accepts Extrusions, buy dovetail extrusions and cut to size
- Industry Standard Bolt Pattern
- Available in 6" size - other sizes coming soon
How Does It Work?
- Bolt the OP Master Jaw onto your vise
- OP Slave Jaws will quick change in under 30 seconds
- Use a variety of slave jaws, make your own, or buy customizable extrusions
What's Included?
- (2) OP Master Jaws - bolt these to vise
- (2) OP Slave Jaws - quick change jaws
- (4) Socket Head Cap Screws
|
|
|
|
|
OPJ-600
|
6-Inch OP Jaws Quick Change Set |
 PHOTO |
$149.00
|
IN STOCK |
|

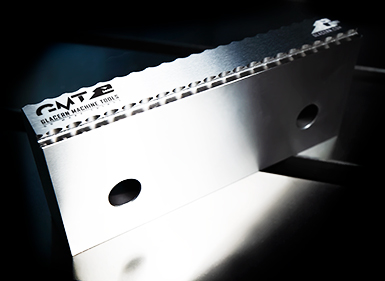

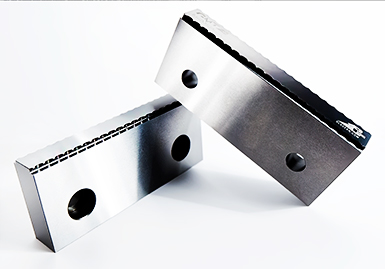

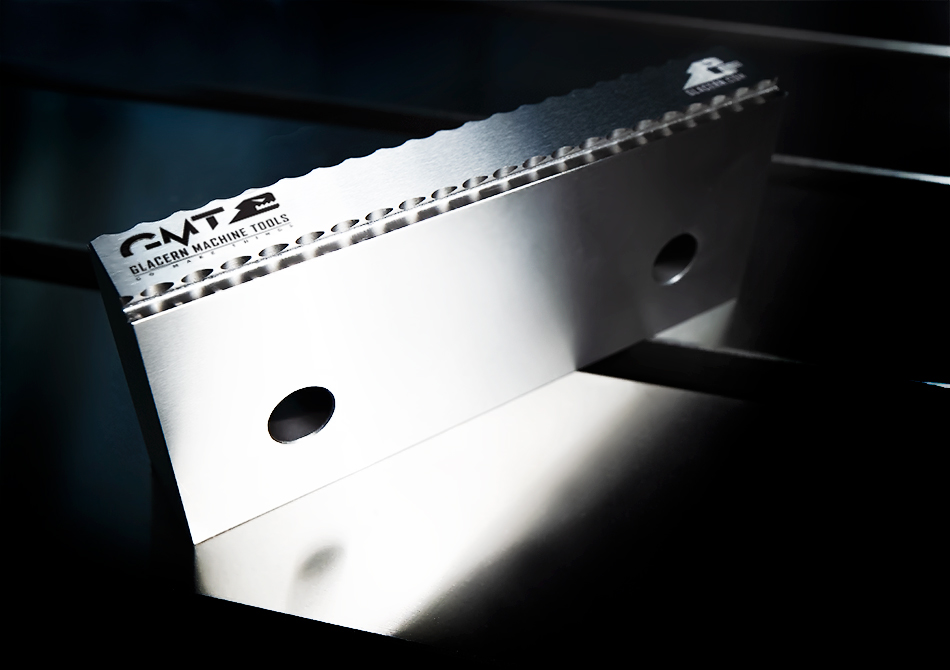

NEW Chomper Jaws and Serrated Jaws for Machine Vises
|
|
|
|
|
|
Our line of specialty serrated jaws for your machine vise is made to grip extra tough material with ease. Choose from our extra tall Chomper Jaws featuring teeth and a dovetail step or full faced serrated jaws if you need extra bite while holding hard metals. These jaws start as a block of 4140 steel and are thru-hardened, precision surface ground, and machined to shape. We'll be making these jaws in both 6 Inch and 4 Inch sizes with the industry standard bolt pattern to fit any machine vise you have.
Chomper Jaws (pair)
IN STOCK // Order Yours Now
- Glacern Chomper Jaws with teeth for extra bite
- Serrated teeth design allows clamping of workpieces with less material
- GCJ-600 dimensions: 6" x 1" x 2.5" extra tall
- GCJ-500 dimensions: 5" x 1" x 2.25" extra tall
- GCJ-400 dimensions: 4" x 1" x 2.0" extra tall
- 0.125 Inch Step and built-in dovetail for workpiece to rest on
- 4140 Steel thru-hardened to HRC55
- Precision ground and hard milled
- Industry Standard Bolt Pattern
- Available in 6" and 4" sizes
Serrated Face Jaws (pair)
- Glacern Serrated Face Jaws for tough to grip metal
- Serrated face design allows clamping of toughest workpieces
- GXJ-600 dimensions: 6" x .7" x 1.75" tall
- GXJ-400 dimensions: 4" x .6" x 1.50" tall
- 4140 Steel thru-hardened to HRC55
- Precision ground and hard milled
- Industry Standard Bolt Pattern
- Coming Soon in 6" and 4" sizes
|
|
|
|
|
GCJ-600
|
6-Inch Chomper Hard Jaws |
PHOTO |
$199.00
|
IN STOCK |
|
|
GCJ-500
|
5-Inch Chomper Hard Jaws |
PHOTO |
$169.99
|
IN STOCK |
|
|
GCJ-400
|
4-Inch Chomper Hard Jaws |
PHOTO |
$169.99
|
IN STOCK |
|
|
GXJ-600
|
6-Inch Serrated Hard Jaws |
PHOTO |
$199.99
|
OUT OF STOCK |
Email Us |
|
GXJ-400
|
4-Inch Serrated Hard Jaws |
PHOTO |
$139.99
|
IN STOCK |
|
NEW GV6/4 Workstop for both 6-Inch and 4-Inch Vises
|
|
|
|
|
|
A Work Stop Made for Both 6 Inch and 4 Inch Vises
If you're looking for a work stop to compliment your 6 Inch or 4 Inch Glacern vise, look no further, it's here! Introducing the GV6-STOP, a colorful companion to your Glacern vise. Now it has two sets of holes to work with both 6" and 4" vises.
New Glacern Vise Work Stops
- 6" and 4" Vise Work Stop
- Holes for both 6" and 4" compatibility
- Anodized aluminum finish
|
|
|
|
GV6-STOP
|
Work Stop for 4 and 6 Inch Vise |
PHOTO |
$149.99
|
IN STOCK |
|
NEW CAT50 Double Contact Taper Holders
New FM10 High Productivity Facemills
|
|
|
|
|
|
For high feed machining with low cutting depths, the Glacern FM10 Facemill is a very productive roughing tool to use when metal removal is the highest priority.
The 10-degree cutting angle allows the operator to enter the cut with extreme feedrates, directing the cutting forces in the axial direction.
This provides a stable cutting situation with no added vibration tendency.
This cutter excells when using high speed machining strategies, employing high table feed and the chip thinning effect, resulting in high productivity.
If you have applications with long or weak setups, this cutter's lower vibration can also be advantageous. The nickel-plated Glacern FM10
has a variety of purposes including face milling, hole making using three axes, ramping, plunge milling, and boring.
Made of premium alloy steel and hardened to 35HRC. Screws are included, and replacement screws are available.
Compatible with XDLT090408 inserts in general purpose (SP6519) or aluminum (GH2). Inserts sold separately.
Features
- 10-degree face milling cutter
- Heavy roughing and rapid material removal
- Chip thinning and low vibration cutting
- Face milling applications in all types of materials
- Diameter range 50.0 mm (2.000 inch)
- Electroless Nickel Plated Finish
- Compatible with XDLT090408 inserts
| Model |
Cut Dia |
Bore |
Flutes |
Weight |
| FM10-200 |
50mm |
1.000" |
4 |
1.5 lbs |
| Model |
Holder |
| FM10-200 |
CAT40-FM100-175, R8-FM100, BT30-FM100-175B, BT40-FM100-175B, NT40-FM100B |
|
|
|
|
|
FM10-200
|
FM10 Facemill - 2.0in (50mm) |
PHOTO |
$149.99
|
IN STOCK |
|
|
XDLT090408-SP6519
|
Kennametal Inserts (pack of 10) |
PHOTO |
$199.99
|
IN STOCK |
|
|
XDLT090408-GH2
|
Kennametal Inserts (pack of 10) |
PHOTO |
$199.99
|
IN STOCK |
|
New Carvable Soft-Jaw Sets for GDV Vises
|
|
|
|
|
|
Carvable Aluminum Jaws for Glacern Double Vises
The Glacern "CSJ" (Carvable Soft Jaw) set allows customers to replace the standard 3 jaws on Glacern Double Vises with completely carvable aluminum duplicates. Available in a 4" version, a 6" version, and an 8" version, these carvable soft jaws allow even greater flexibility, opening up additional custom setup options for multi-part machining jobs. Perfect for secondary operations when you need to clamp irregular parts.
Set Includes:
- (2) Aluminum Movable Jaws
- (1) Aluminum Fixed Center Jaw
|
|
|
|
GDV-CSJ400
|
4-Inch Carvable Jaws for GDV Vise |
PHOTO |
$199.99
|
IN STOCK |
|
|
GDV-CSJ600
|
6-Inch Carvable Jaws for GDV Vise |
PHOTO |
$199.99
|
IN STOCK |
|
|
GDV-CSJ680
|
8-Inch Carvable Jaws for GDV Vise |
PHOTO |
$299.99
|
IN STOCK |
|
New Glacern Floating Tap Holders
|
|
|
|
|
|
Floating tap holders, aka Tension/Compression Tap Holders are the perfect solution when you need to tap a hole. Bridging the synchronization gap between toolhodler and Z-axis feed, the spring mechanism compensates for the minute acceleration and deceleration a tap experiences when reversing as the axial feed typically does not account for this slight variance. Using floating tap holders can dramatically improve the tap life and thread quality, because the extra axial forces on the tap are eliminated.
Features
- Reduces risk of tap breaking
- Controls tapping process by adding axial compensation
- Use with common ER32 or ER16 collets
- Helps increase tap life and thread quality
- Tension and compression to eliminate feed errors
- Electroless Nickel Plated Finish
- Precision ground surfaces
- Tapers and flange hardened to 55 HRC
- Rear thread for pull stud 5/8-11 UNC
- All CAT40 chucks balanced to G2.5 @ 20,000RPM
Extra Info When machining a thread, the following rule applies. (Feed rate = Pitch x Spindle speed) If the tap RPM and the feedrate do not follow the rule, the result is damaged threads. If the tap is rotating but not moving forward, you risk the tap breaking or getting a bore instead of a tapped hole. Floating tap holders function as if you're tapping by hand, the tap only rotates at a speed proportional to the ptich and rotation speed of your hand. In essence, it allows the tap to "float".
|
|
|
|
|
|
|
|
|
|
|
CAT40-ER16-TAP
|
ER16 Floating Tap Holder |
PHOTO |
$199.99
|
IN STOCK |
|
|
CAT40-ER32-TAP
|
ER32 Floating Tap Holder |
PHOTO |
$219.99
|
IN STOCK |
|
New Glacern Milling Chucks
|
|
|
|
|
|
For serious milling jobs, Glacern Milling Chucks have up to five times the gripping power of traditional collet chucks and are incredibly rigid and highly accurate.
Our unique vibration-reducing design makes this tool a perfect fit for roughing, finishing, and even hardmilling. Integrated needle bearings provide up to 140% more
bearing surface than traditional designs and assure powerful and distortion free clamping, even under heavy milling. Our chucks undergo a sub-zero cryogenic treatment
which prevents deformation over time.
Nickel-plated and hardened to 55 HRC. The taper and critical surfaces are precision ground to a TIR of less than 0.0002" with a 0.00015 concentricity at the collet bore.
MC75 holders have a 0.750" max capacity and are compatible with the following step-down collets:
- MC75-1/8, 3/16, 1/4, 3/8, 1/2, 5/8 Inch
MC125 holders have a 1.250" max capacity and are compatible with the following step-down collets:
- MC125-1/4, 3/8, 1/2, 5/8, 1.0 Inch
Features
- Powerful clamping for heavy cutting
- Supports heavy and finish end milling with high precision
- Superior clamping pressure over ER Collet Chucks & Endmill Holders
- Thick wall on a clamping part prevents chattering
- Fine narrow slots clamp the tool shank evenly & eliminate oil that spoils clamping torque
- Electroless Nickel Plated Finish
- Precision ground surfaces
- Concentricity < 0.0004" at 4xD
- Tapers and flange hardened to 55 HRC
- Rear thread for pull stud 5/8-11 UNC
- All CAT40 chucks balanced to G2.5 @ 20,000RPM
|
|
|
|
|
|
|
|
|
|
|
CAT40-MC75
|
Milling Chuck, 0.75-inch bore |
PHOTO |
$199.99
|
IN STOCK |
|
|
CAT40-MC125
|
Milling Chuck, 1.25-inch bore |
PHOTO |
$199.99
|
IN STOCK |
|
|
|
|
|
|
|
|
MC75-1/8
|
MC75 Collet |
|
$29.99
|
IN STOCK |
|
|
MC75-3/16
|
MC75 Collet |
|
$29.99
|
IN STOCK |
|
|
MC75-1/4
|
MC75 Collet |
|
$29.99
|
IN STOCK |
|
|
MC75-3/8
|
MC75 Collet |
|
$29.99
|
IN STOCK |
|
|
MC75-1/2
|
MC75 Collet |
|
$29.99
|
IN STOCK |
|
|
MC75-5/8
|
MC75 Collet |
|
$29.99
|
IN STOCK |
|
|
|
|
|
|
|
|
MC125-1/4
|
MC125 Collet |
|
$29.99
|
IN STOCK |
|
|
MC125-3/8
|
MC125 Collet |
|
$29.99
|
IN STOCK |
|
|
MC125-1/2
|
MC125 Collet |
|
$29.99
|
IN STOCK |
|
|
MC125-5/8
|
MC125 Collet |
|
$29.99
|
IN STOCK |
|
|
MC125-1
|
MC125 Collet |
|
$29.99
|
IN STOCK |
|
New Glacern JT6 Drill Chucks
|
|
|
|
|
|
Drill chucks remain unsurpassed in convenience and versatility when it comes to general hole drilling. Our ball bearing drill chucks feature integral shanks for
maximum rigidity and concentricity. Electroless nickle plated for maximum durability. Balanced to 20,000 RPM.
Gripping Capacity
- JT6-DC500: 1/64"-1/2"
- JT6-DC625: 3/64"-5/8"
Features
- Ball bearing construction
- Electroless nickel plating
- TiN coated jaws
- Spanner wrench included for heavy duty applications
|
|
![]()
|
![]()
|
|
|
|
|
|
|
|
JT6-DC500
|
Drill Chuck, JT6 Shank |
PHOTO |
$79.99
|
OUT OF STOCK |
Email Us |
