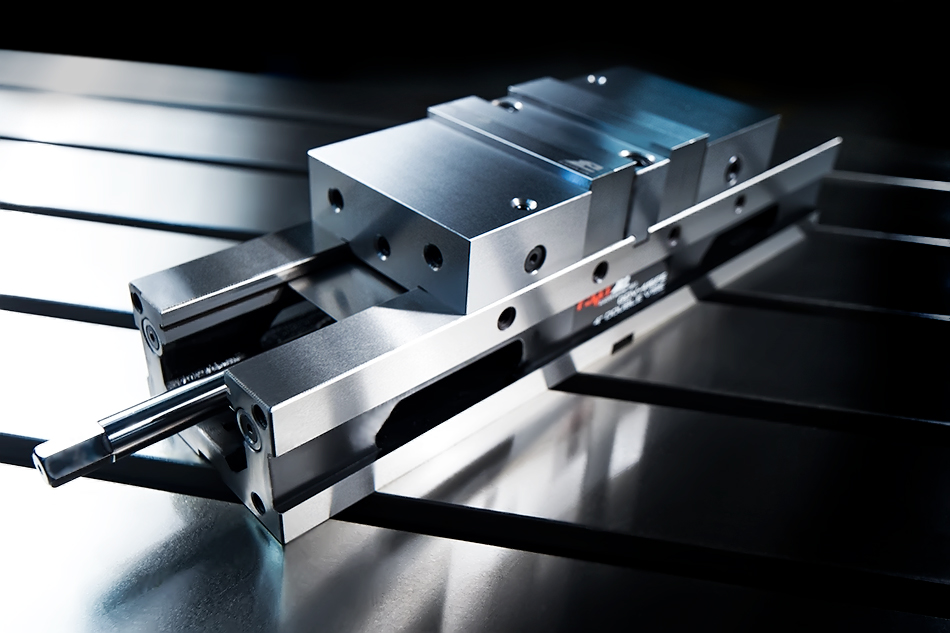

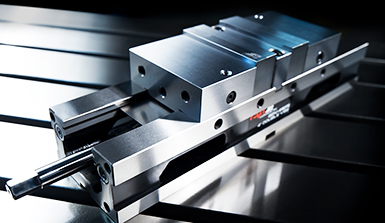

GDV-416DX 4" Deluxe Double Vise - V2

» Video: Product Spotlight on GDV Double Vises

Product Overview
The compact Glacern GDV-416DX (Version 2) 4" Deluxe Double Vise makes our popular machine vise design even better by improving on the past and incorporating new features. Maximize your VMC or HMC table real estate even more by attaching the vise to your table/tombstone with our new machined thru-holes. The GDV-416DX (Version 2) has four thru-holes, which allow you to drop a long 1/2-13 bolt down through the bed itself to attach the vise to the table - completely aleviating the need for side clamping.

Precision flat ground sides allow high density mounting. The 55 pound weight makes this vise a much more manageable alternative to larger vises for shops who make frequent setup changes and don't have access to an overhead crane. Perfect for high volume work on small parts, each station can clamp up to 3.5". When needed for larger jobs, the center jaw can be removed and by using the jaw-fixing plate the vise can convert into a 9.25" capacity single station or reversed single station vise.

Running a Haas or a Tormach? All of our vises now come with 5/8" T-slot keys. If you'd like 11/16" instead, shoot us an email after you place your order online to let us know and we'll gladly swap sizes for free!

New Features
  • New Upgraded Body Design
  • Machined Thru-Holes for bolting to table
  • Side Holes for Grip and also Chip Evacuation
  • Designed to optionally mount on 2x2 grid plate

Construction
  • 80,000 PSI stress-relieved ductile cast iron
  • Bed and jaw plates hardened to HRC 50
  • Anti jaw-lift with eccentric pin mechanism
  • Unique leadscrew design clamps different sized workpieces
  • Converts into single station cnc vise w/ included hardware
  • Over 10,000 lbs max clamping force
  • Clamping repeatability of +/- 0.0002"

Specifications
  • 2.5" bed height, +/- 0.0005"
  • Bed heights matched with multiple cnc vise orders

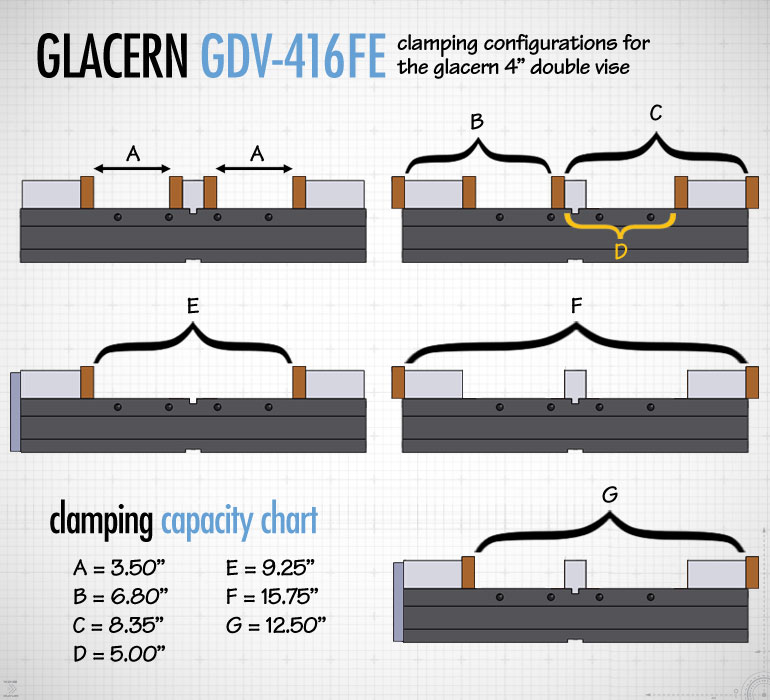

  • 3.5" capacity each station in standard configuration
  • 9.25" capacity in single station configuration
  • 15.5" maximum plate clamping capacity
  • 16" bed length
  • Adjustable friction stop enables sequential jaw movement
  • 55 lbs shipping weight
  • Lifetime limited warranty
  • Click to view additional specs and dimensions below

Included Accessories
  • Polished Handle (9/16" hex)
  • 4" Hard Jaw Plates
  • 5/8" T-slot alignment keys (11/16" keys also available)
  • Four Toe Clamps
  • Four T-slot mounting bolts & nuts
  • Built-in Chip guards
  • Jaw-Fixing Plate


Optional Accessories
  • Specialty Vise Jaws for 4" CNC vises
  • Speciality Speed Handles
  • Work Stop (compatible with 4" and 6" vises)
  • 4" Soft Jaws in aluminum (6" extra wide size available)
  • Fully carvable soft jaw sets for customized setups
  • Extra 4" hard jaw plates
  • Extra T-slot alignment keys
  • Click here to view all Glacern Vise Accessories


GDV-416DX 4 Inch Deluxe Double Vise - V2 PHOTO $1249.00 IN STOCK


Specialty Vise Jaws
GCJ-400 4-Inch Chomper Hard Jaws PHOTO $169.99 IN STOCK

OPJ-400 4-Inch OP Jaws Quick Change Set PHOTO $199.00 IN STOCK

GVJ-400 4-Inch Hardened Vee Jaw PHOTO $99.00 IN STOCK

GXJ-400 4-Inch Serrated Hard Jaws PHOTO $139.99 IN STOCK

GHJ-400-P 4-inch Original Hard Jaws (Pair) PHOTO $119.99 IN STOCK

GSJ-4AL Soft Jaws - 4 Inch Aluminum PHOTO $59.00 IN STOCK

GSJ-460AL Extra Wide 6 AL Soft Jaws for 4 In Vises PHOTO $59.00 IN STOCK

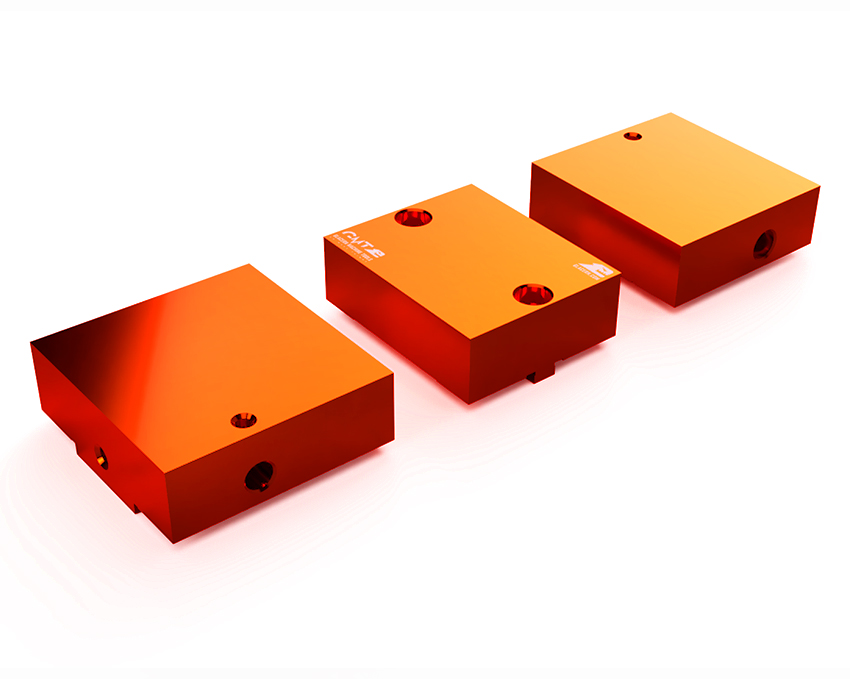

GDV-CSJ400 4-Inch Carvable Jaws for GDV Vise PHOTO $199.99 OUT OF STOCK Email Us

Optional Vise Accessories
GAK-625ST 5/8 Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-6875 11/16 Inch T-Slot Keys PHOTO $49.99 IN STOCK

GAK-14mmST 14mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-18mmST 18mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-22mmST 22mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GV4-HANDLE Extra Handle for 4-inch Vise PHOTO $59.99 IN STOCK

GV4-HANDLE-CRANK Crank Handle for 4-inch Vise PHOTO $29.00 IN STOCK

GV4-HANDLE-SPEED Speed Handle 4 Inch Vise PHOTO $99.00 IN STOCK

GV6-STOP Work Stop for 4 and 6 Inch Vise PHOTO $149.99 IN STOCK



Technical Specifications & Dimensions Accuracy
Material: 80,000 PSI Ductile Iron Bed Height: 2.500" +/- 0.0005"
Bed Hardness: HRC 50 Bed to Base: Parallel to 0.0005"
Jaw Plate Threads: 3/8"-16 UNC, 2.500" Spacing Fixed Jaw to Bed: Perpendicular to 0.0005"
Clamping Force: 10,000 lbs Fixed Jaw to Keyway: Parallel to 0.0005"
Shipping Weight: 55 lbs Clamping Repeatability: +/- 0.0002"

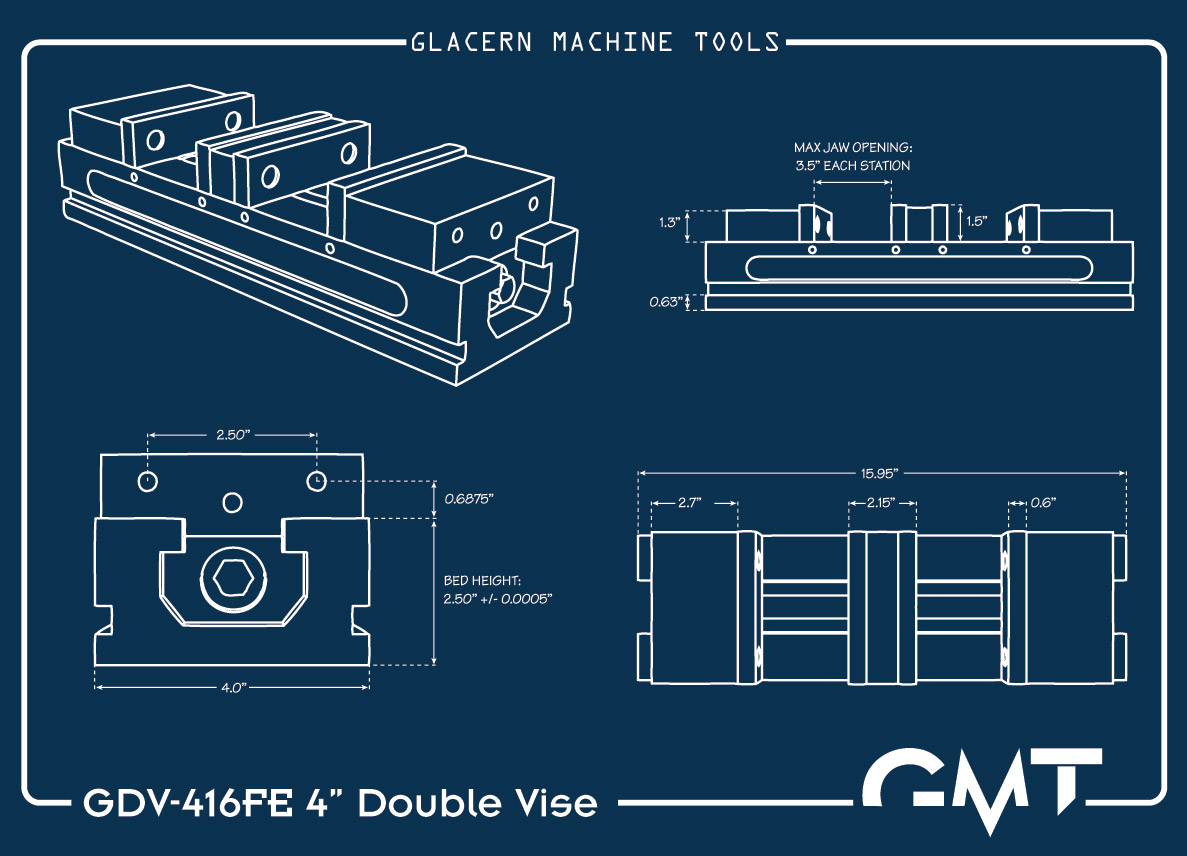

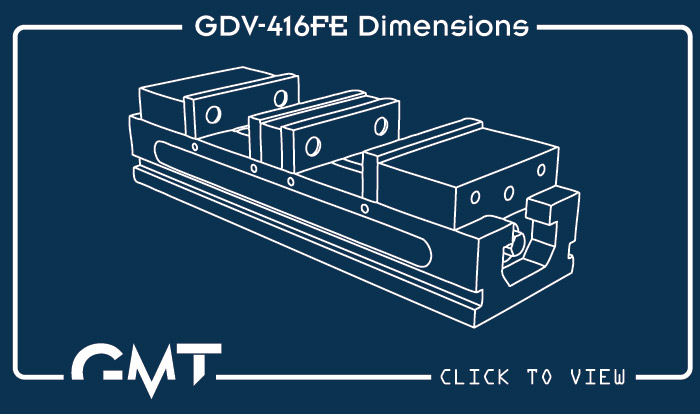

[ Click to View Detailed Dimensions ] [ Right Click to Save ]



Glacern T-Slot Alignment Key Size Chart
