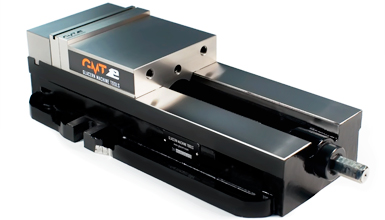

GSV-690 6" Standard CNC Milling Vise

Product Overview

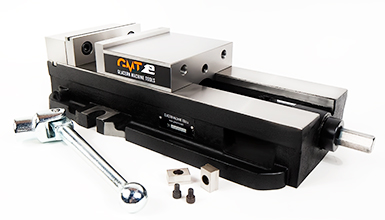

Our most popular standard machine vise. The Glacern GSV-690 standard CNC vise combines premium quality, high precision, and wide clamping capacity at an affordable price. 8.95" of clamping capacity between inner jaws and up to 17.00" of capacity between the outer jaws. Fixed jaw plate comes equipped with a groove compatible with most aftermarket work stops. Pair it with the matching swivel base (SB-690) that adjusts in 1-degree increments up to 180-degrees. Base and sides are painted for increased corrosion resistance. Includes a polished handle and 5/8" T-slot keys.

Running a Haas or a Tormach? All of our vises now come with 5/8" T-slot keys. If you'd like 11/16" instead, shoot us an email after you place your order online to let us know and we'll gladly swap sizes for free!


New Features

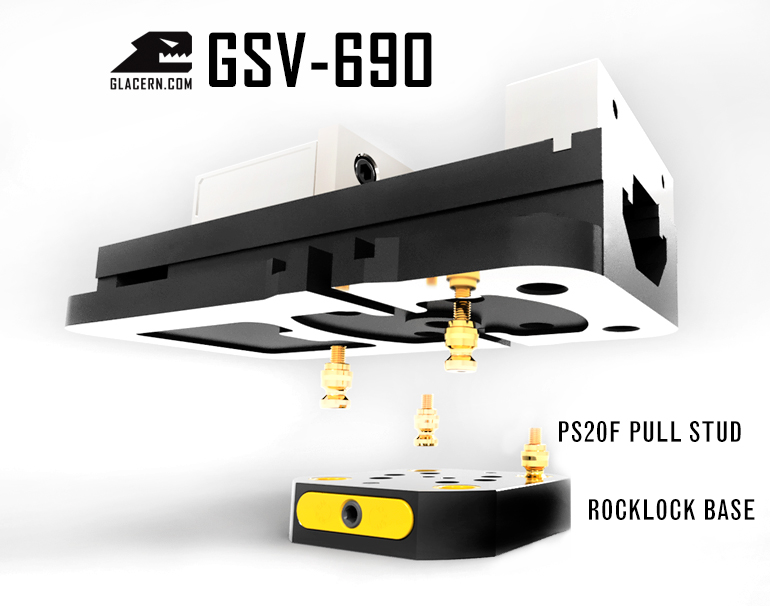

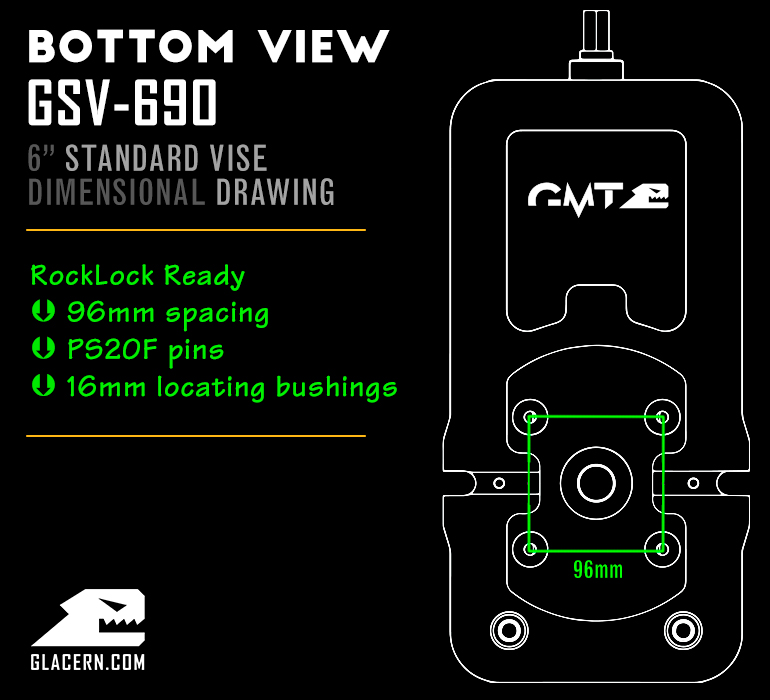

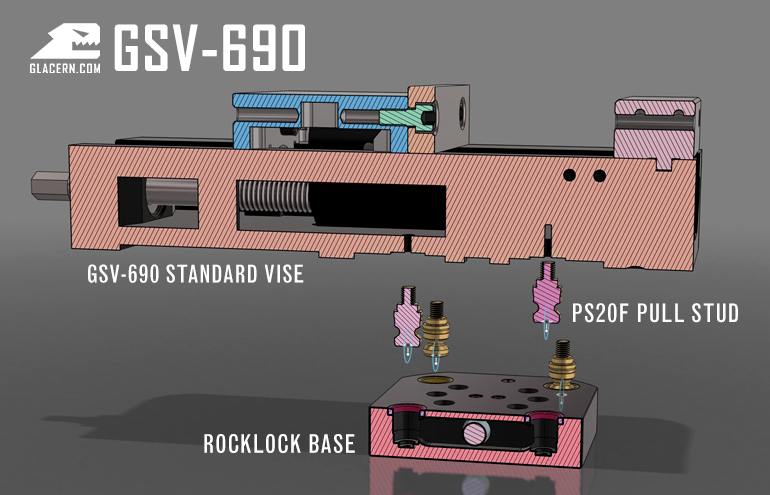

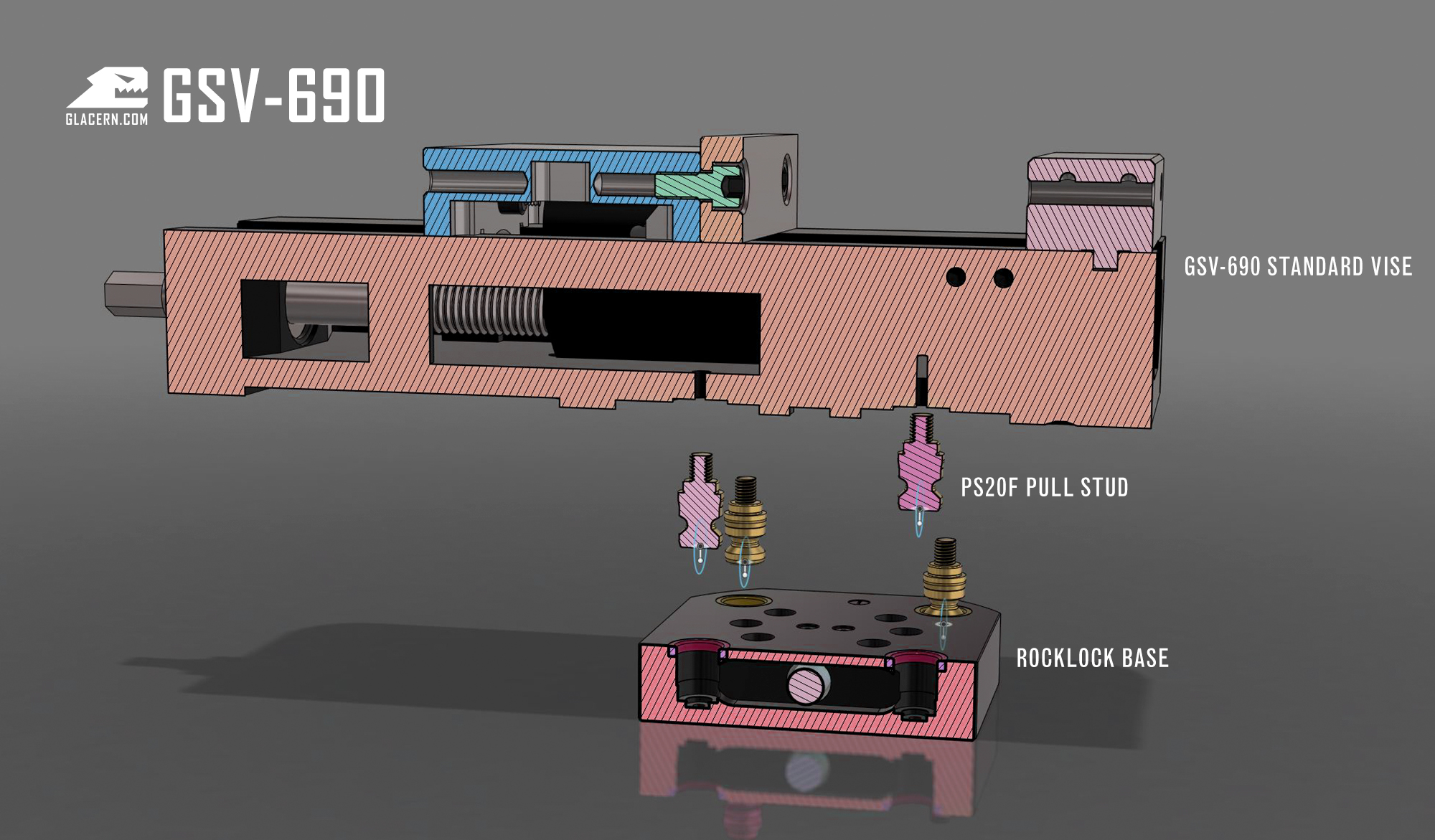

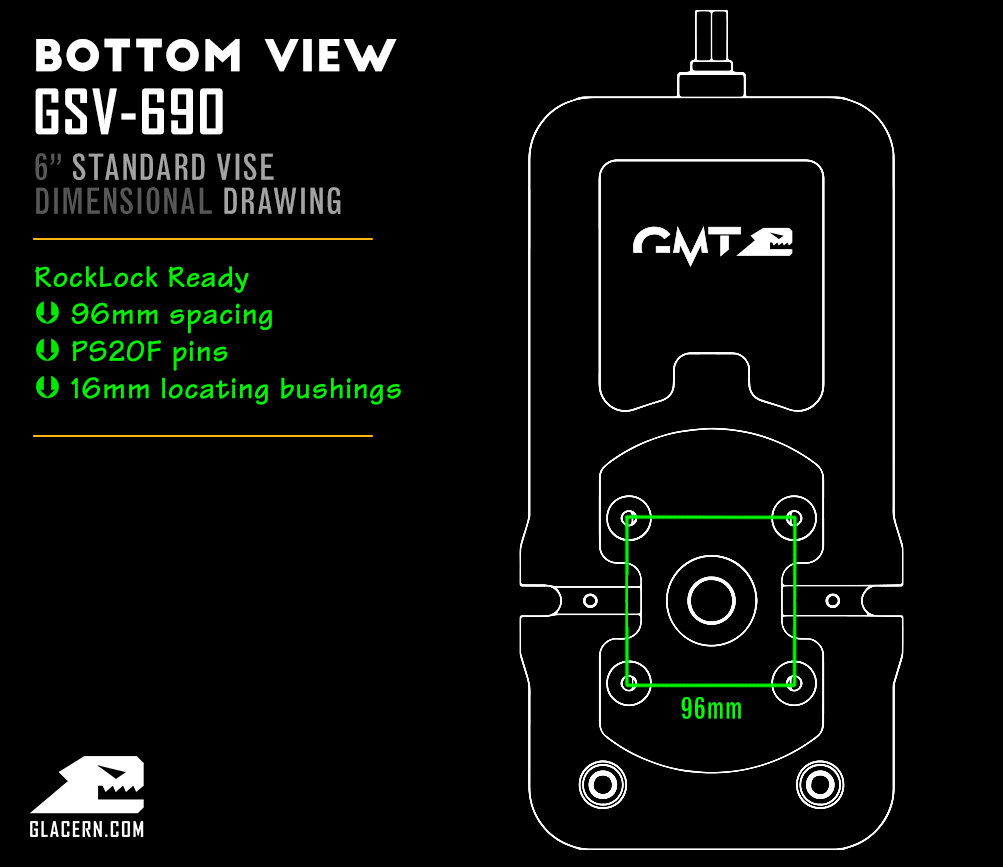

  • RockLock Ready (96mm spacing)
  • (4) 16mm Precision Bushing Mounting Points

Construction
  • 80,000 PSI stress-relieved ductile cast iron
  • Bed and jaw plates hardened to HRC 50
  • Anti jaw-lift with 45-degree wedge & hemisphere
  • Over 10,000 lbs max clamping force
  • Clamping repeatability of +/- 0.0004"

Specifications
  • 2.875" bed height
  • Bed heights matched with multiple cnc vise orders
  • 8.95" capacity between the inner jaw plates
  • 17.00" capacity between the outer jaw plates
  • Industry-standard bolt hole pattern (3.875" x 0.9375")
  • 81 lbs shipping weight
  • Lifetime limited warranty
  • Scroll down to view dimensions and photos.

Included Accessories
  • Polished Handle (3/4" hex)
  • 6" Hard Jaw Plates
  • 5/8" T-slot alignment keys (11/16" keys also available)
  • Chip guard


Optional Accessories
  • Swivel base for GSV-690 standard CNC vise
  • Specialty Vise Jaws for 6" CNC vises
  • Speciality Speed Handles
  • Work Stop (compatible with 4" and 6" vises)
  • 6" Soft Jaws in steel or aluminum (3 sizes)
  • Extra 6" hard jaw plates
  • Extra T-slot alignment keys
  • Click here to view all Glacern Vise Accessories


Note: All GSV vises come with an alignment notch near the left side bolt hole for zero-degree compatibility with Glacern swivel bases.






Glacern 6 Inch CNC Vise
6 Inch Milling Machine Vise
6 Inch Precision Vise
6 Inch Standard CNC Vise
GSV-690 6 Inch Standard CNC Vise PHOTO $549.00 IN STOCK

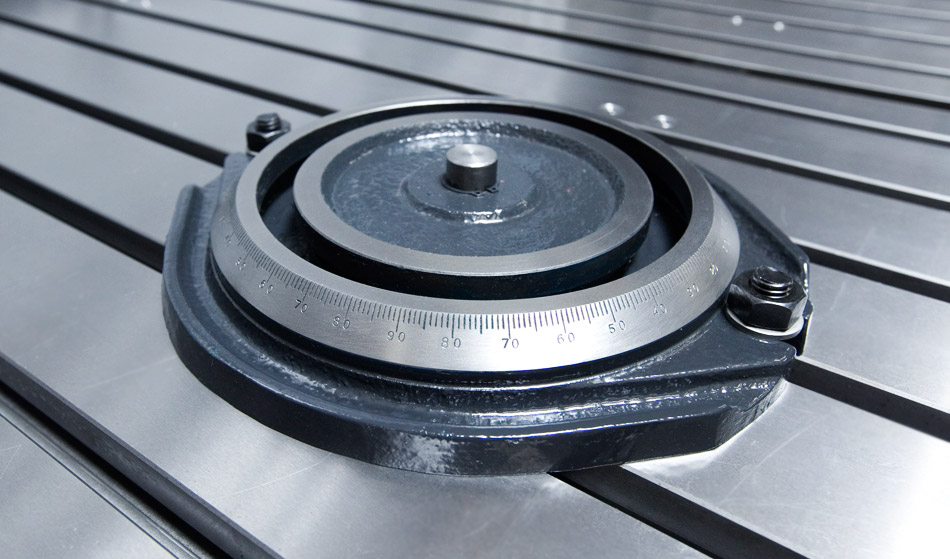

SB-690 Swivel Base for GSV-690 PHOTO $139.99 IN STOCK


Specialty Vise Jaws
GCJ-600 6-Inch Chomper Hard Jaws PHOTO $199.00 IN STOCK

OPJ-600 6-Inch OP Jaws Quick Change Set PHOTO $199.00 IN STOCK

GVJ-600 6-Inch Hardened Vee Jaw PHOTO $139.00 IN STOCK

GHJ-600-P 6-inch Original Hard Jaws (Pair) PHOTO $139.99 IN STOCK

GSJ-061020AL Soft Jaws - Al (6x1x2) Small PHOTO $79.00 IN STOCK

GSJ-061520AL Soft Jaws - Al (6x1.5x2) Medium PHOTO $99.00 IN STOCK

GSJ-062020AL Soft Jaws - Al (6x2x2) Large PHOTO $119.00 IN STOCK


Optional Vise Accessories
GAK-625ST 5/8 Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-6875 11/16 Inch T-Slot Keys PHOTO $49.99 IN STOCK

GAK-14mmST 14mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-18mmST 18mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-22mmST 22mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GV6-HANDLE Extra Handle for 6-inch Vise PHOTO $59.99 IN STOCK

GV6-HANDLE-SPEED Speed Handle - 6 Inch Vise PHOTO $99.00 IN STOCK

GV6-STOP Work Stop for 4 and 6 Inch Vise PHOTO $149.99 IN STOCK






Technical Specifications & Dimensions
Material: 80,000 PSI Ductile Iron Bed Height: 2.8750" +/- 0.0005"
Bed Hardness: HRC 50 Fixed Jaw to Bed: Perpendicular to 0.0005"
Jaw Plate Threads: 1/2"-13 UNC, 3.875" Spacing Fixed Jaw to Keyway: Parallel to 0.0005"
Shipping Weight: 81 lbs Clamping Repeatability: +/- 0.0004"

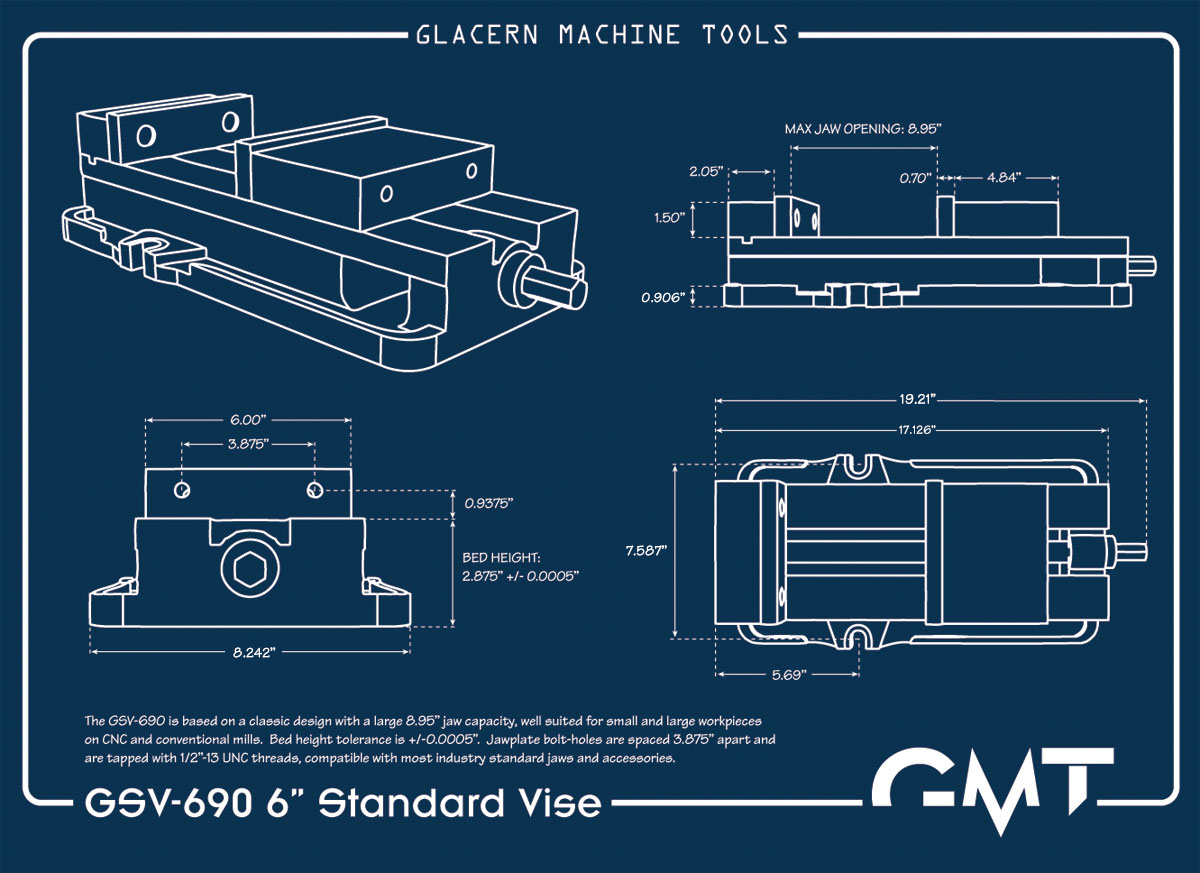

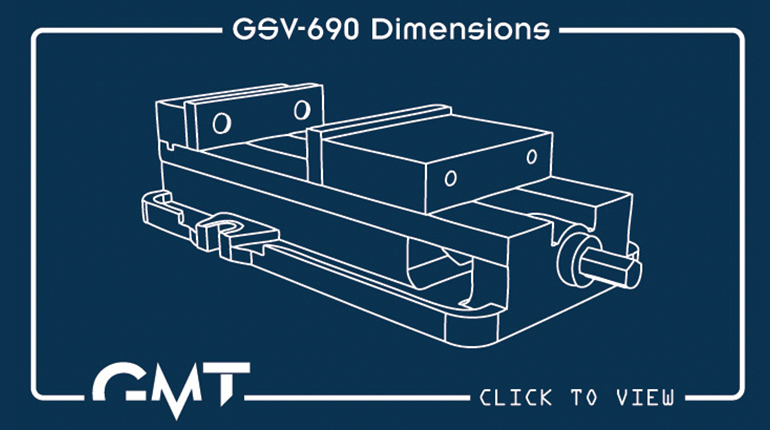

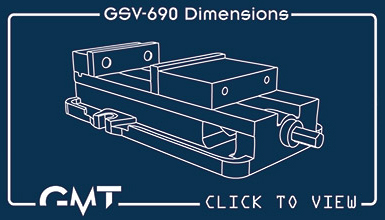

GSV-690 6 Inch Precision Vise Blueprint

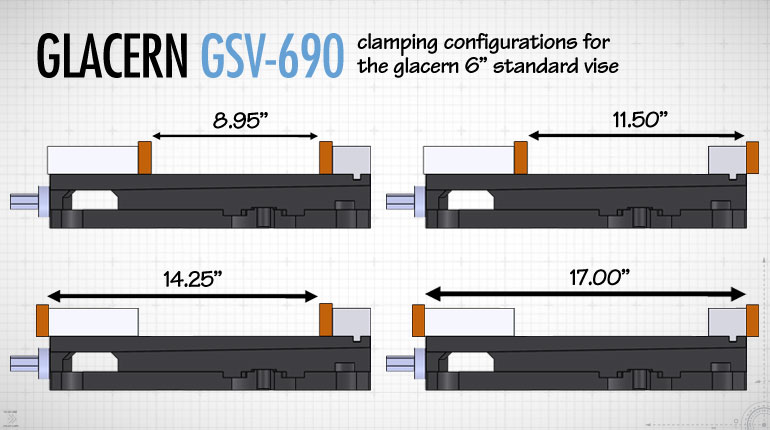

GSV-690 Clamping Configurations

Glacern T-Slot Alignment Key Size Chart

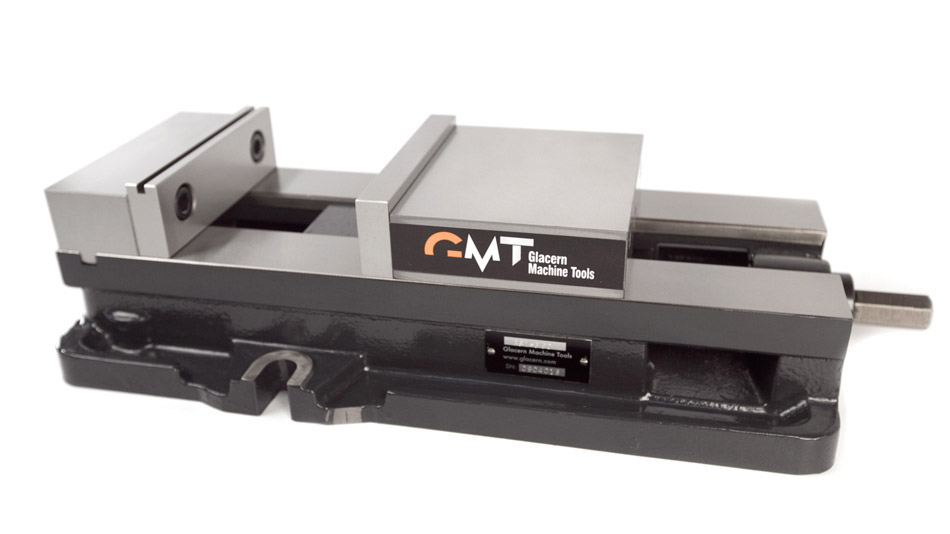

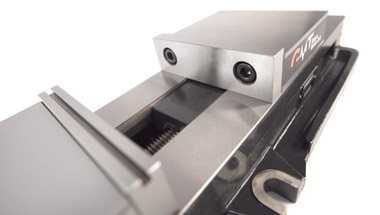

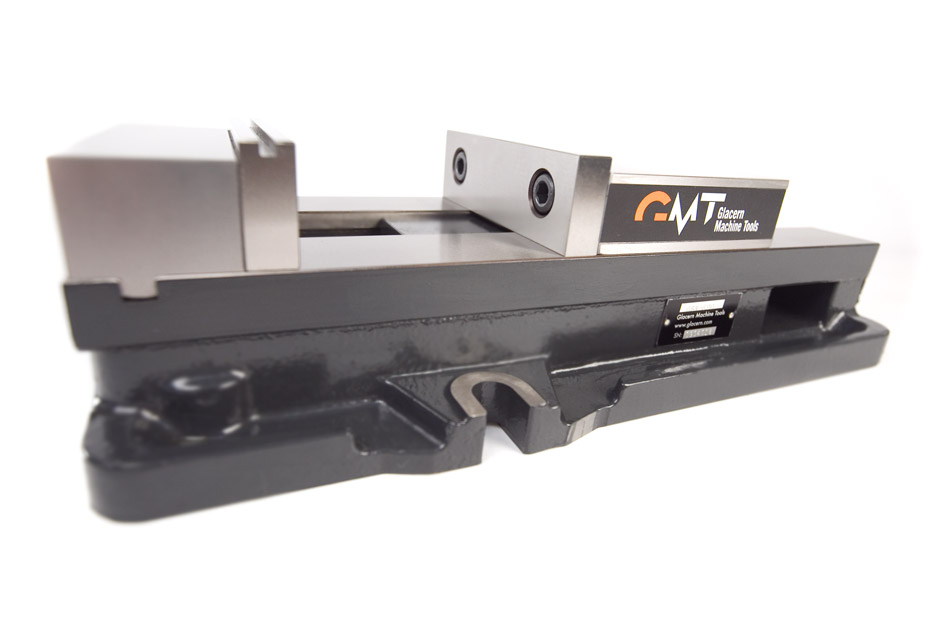

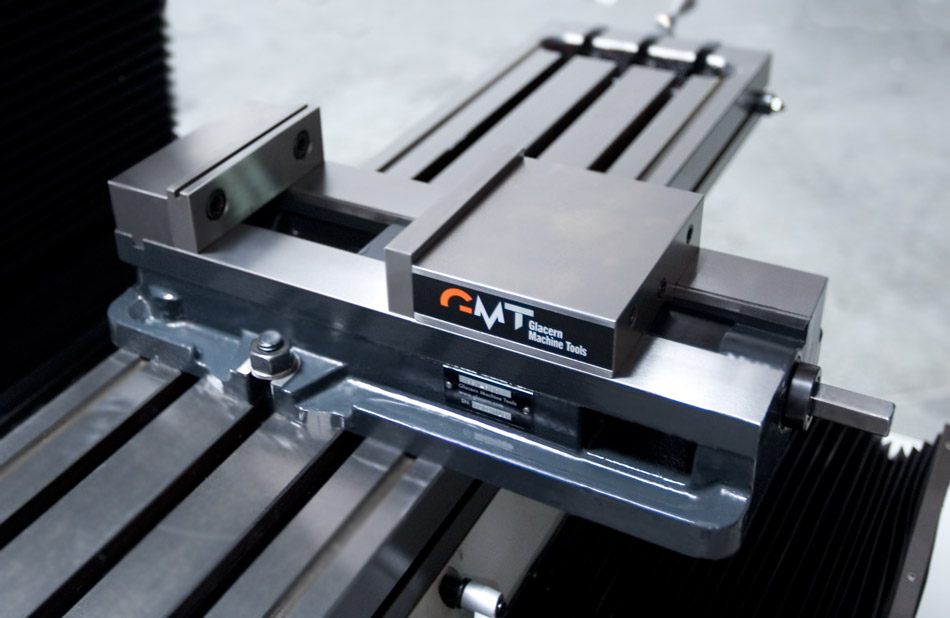

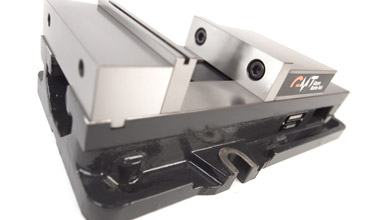

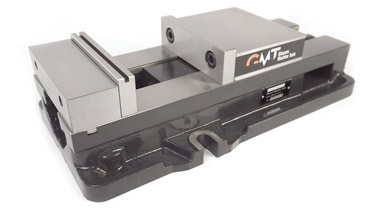

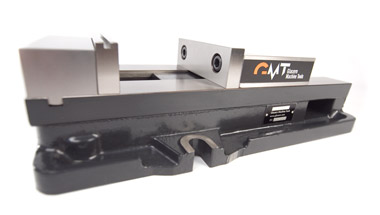

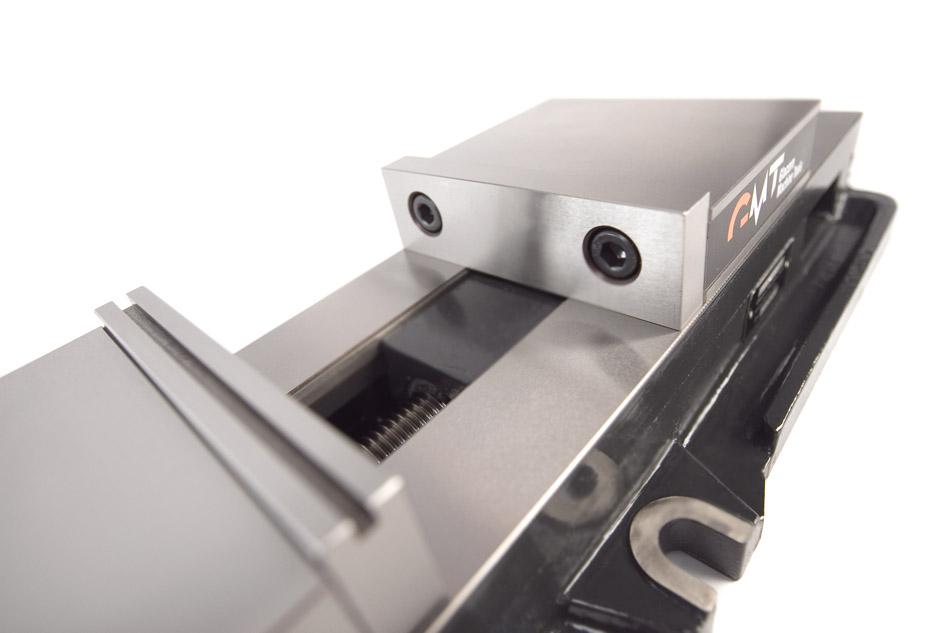

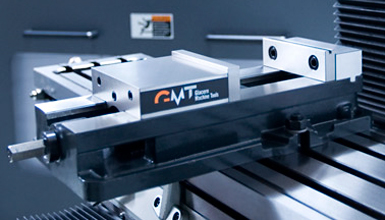

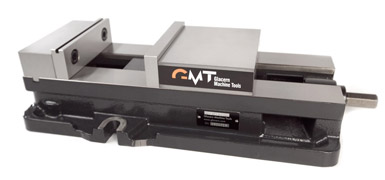

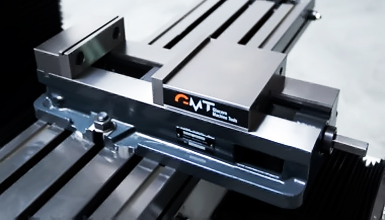

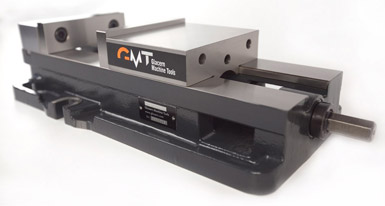

6 Inch Standard CNC Vise 6 Inch Standard CNC Vise
6 Inch Standard CNC Vise 6 Inch Standard CNC Vise
6 Inch Standard CNC Vise 6 Inch Standard CNC Vise
6 Inch Standard CNC Vise 6 Inch Standard CNC Vise
