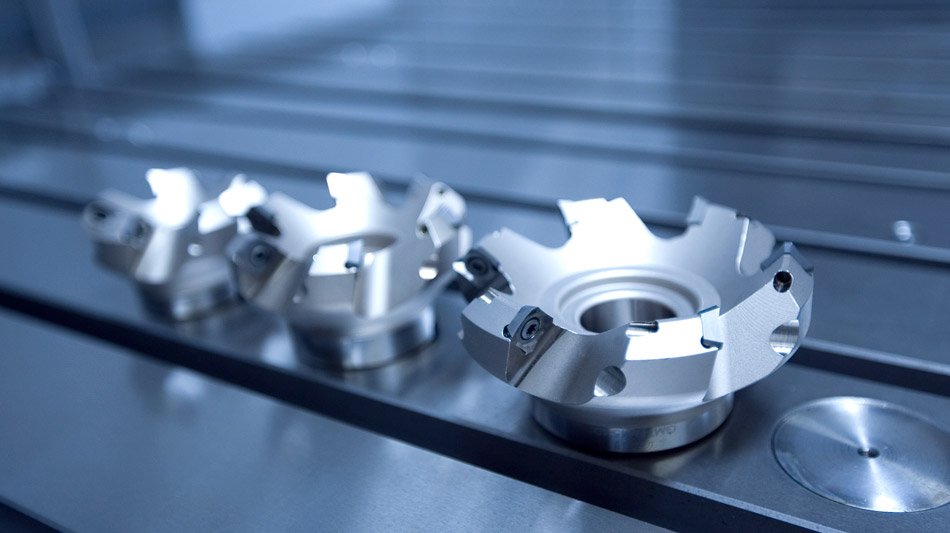

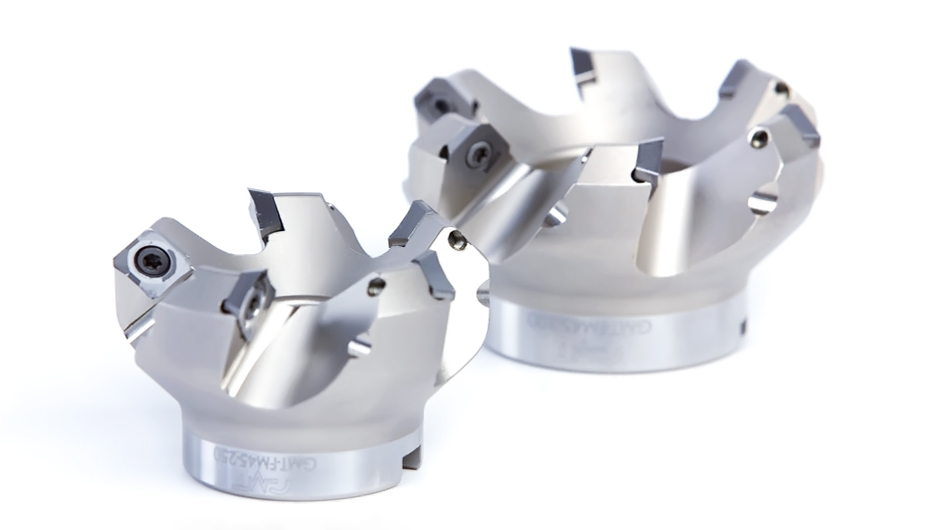

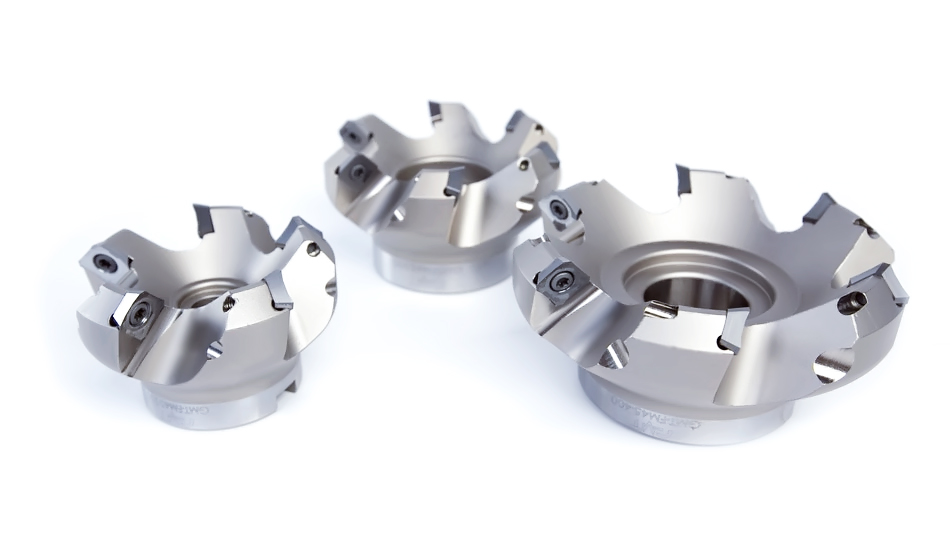

Video: Product Spotlight on FM45 face mills
|
|
|
|
|
|

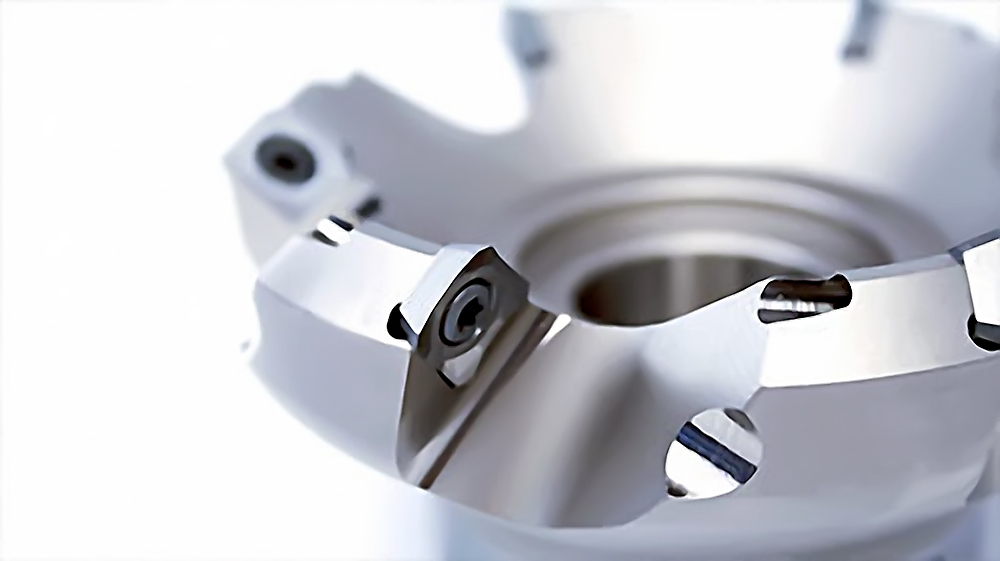

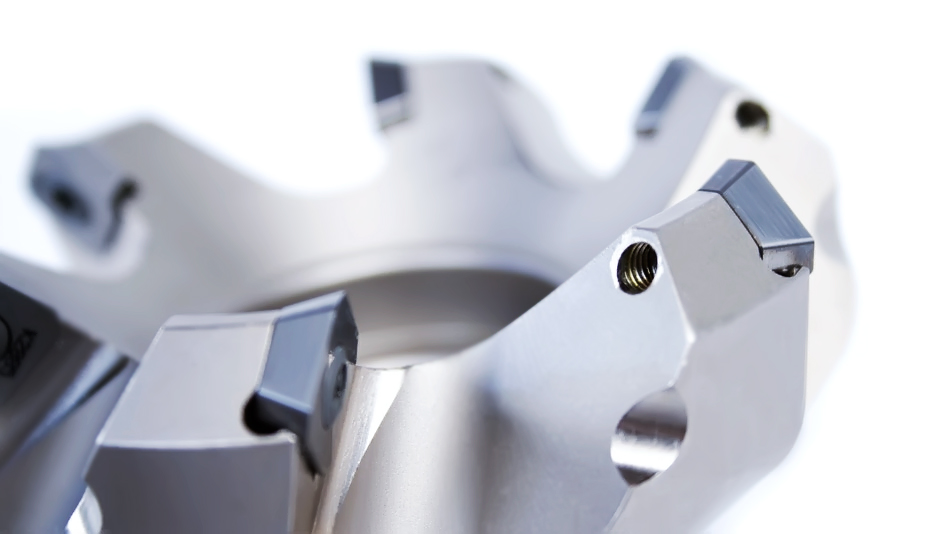

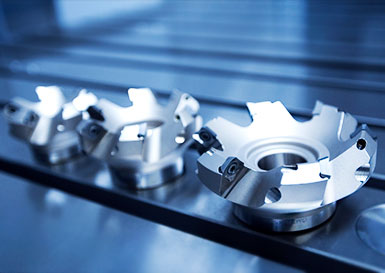

For general purpose facing and fine finishing, Glacern FM45 nickel-plated cutters are hard to beat. 20-degree positive inserts are held in 19-degree positive inclined pockets
for low-vibration cutting. Can be used on smaller machines thanks to the low horsepower requirements.
Chip-thinning from the 45-degree lead angle allows increased feedrates by 50% over 90-degree cutters. Size ANSI SE43 (ISO SE 1204) square inserts maintain chip thinning to a cutting depth
of 0.250". The chamfers on the inserts provide a wiper effect to minimize surface roughness. Inserts sold separately.
Features
- 45-degree face milling cutter
- Heavy roughing and mirror finishing
- Chip thinning and low vibration cutting
- Face milling applications in all types of materials
- Diameter range 50-125 mm (2.000-5.000 inch)
- Electroless Nickel Plated Finish
- Compatible with ANSI SE43 (ISO SE 1204) square inserts
Coolant Through Now Standard Issue on 2-3" Models
- Through coolant compatible FM45 45 degree facemills
- Use it with our CAT40-FM100-175T coolant through arbor
- Remember to use a coolant through pull stud
Model |
Cut Dia |
Bore |
Flutes |
Weight |
FM45-200T |
50mm |
1.000" |
4 |
2.0 lbs |
FM45-250T |
63mm |
1.000" |
5 |
2.0 lbs |
FM45-300T |
80mm |
1.000" |
6 |
2.75 lbs |

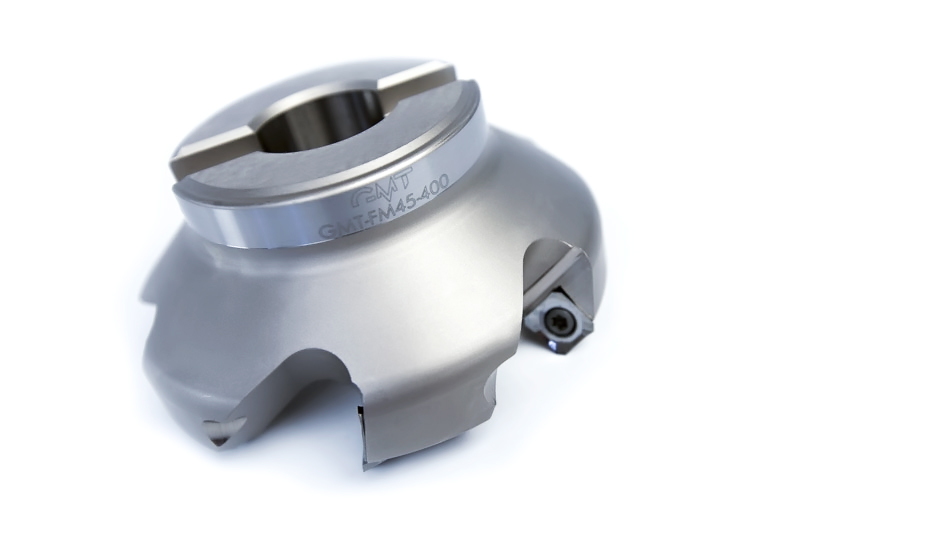

FM45-400 |
100mm |
1.250" |
6 |
4.0 lbs |

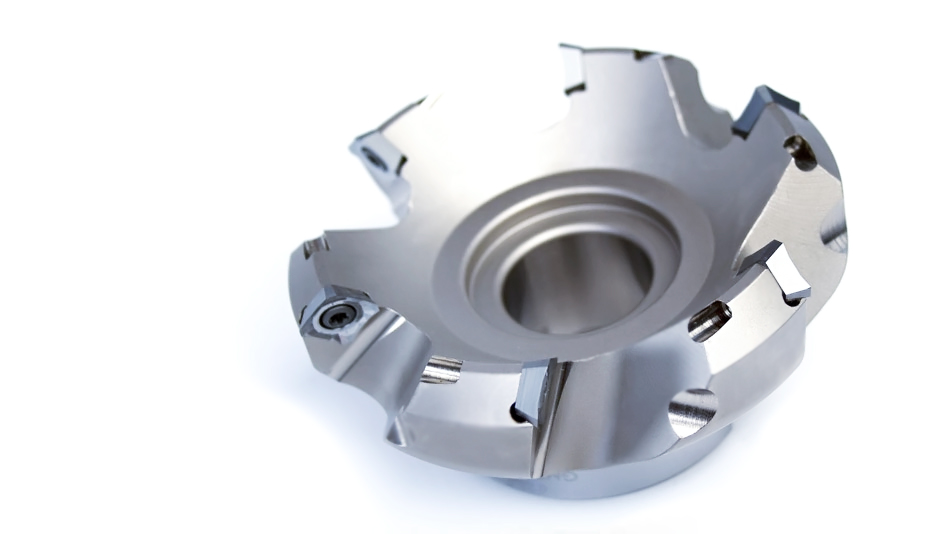

FM45-500 |
125mm |
1.500" |
8 |
7 lbs |
Model |
Holder |
FM45-200T FM45-250T FM45-300T |
CAT40-FM100-175T, CAT40-FM100-400, R8-FM100, BT40-FM100-175B, BT30-FM100-175B, NT40-FM100B |
FM45-400 |
CAT40-FM125-200, R8-FM125, BT40-FM125-175B, NT40-FM125B |
FM45-500 |
CAT40-FM150-200, NT40-FM150B |
* carbide inserts sold separately
|
|
|
|
"
|
|
|
|
|
|

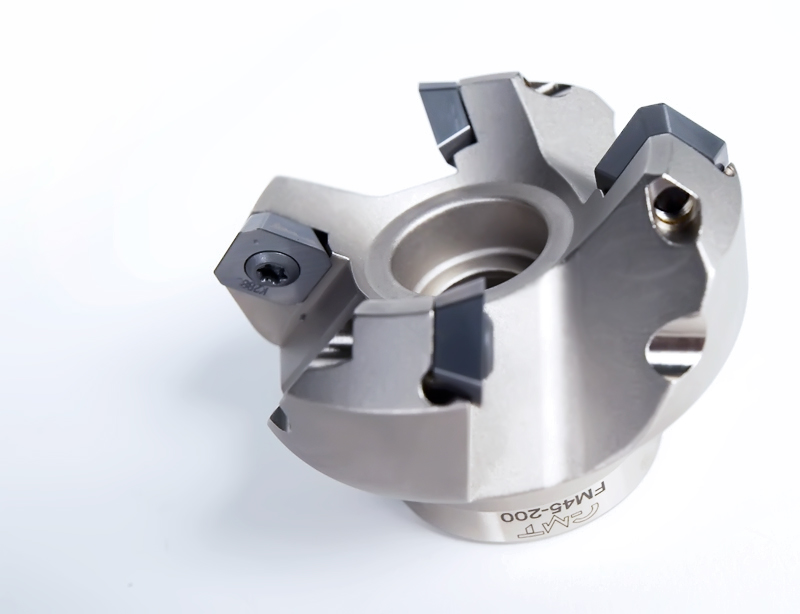

FM45-200T
|
45 Thru-Coolant Facemill - 2.0in (50mm) |
PHOTO |
$139.99
|
IN STOCK |
|

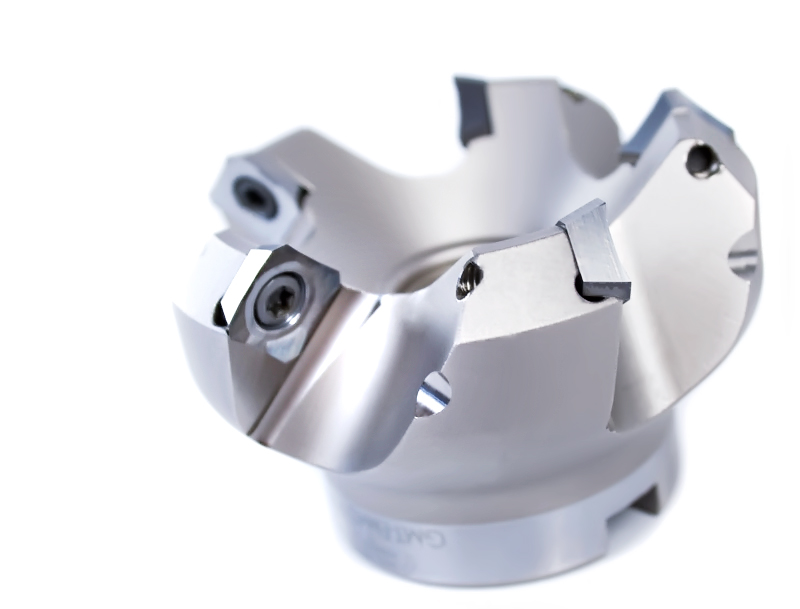

FM45-250T
|
45 Thru-Coolant Facemill - 2.5in (63mm) |
PHOTO |
$149.99
|
IN STOCK |
|

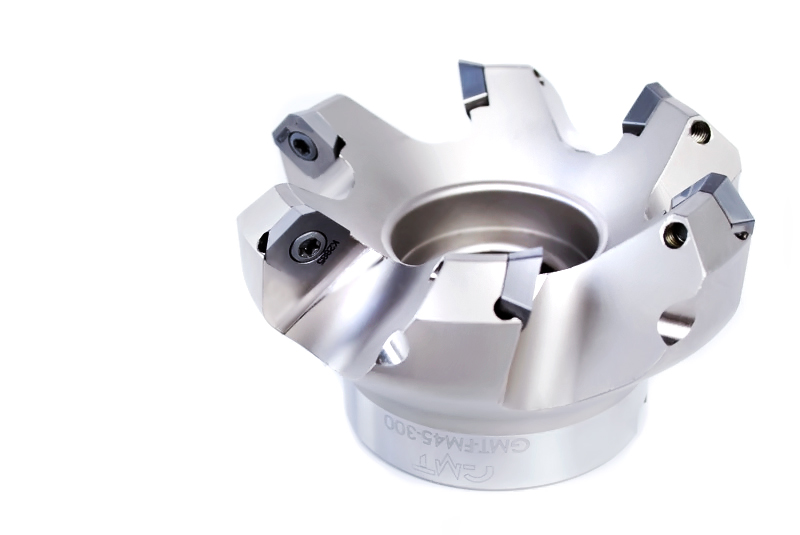

FM45-300T
|
45 Thru-Coolant Facemill - 3in (80mm) |
PHOTO |
$159.99
|
IN STOCK |
|

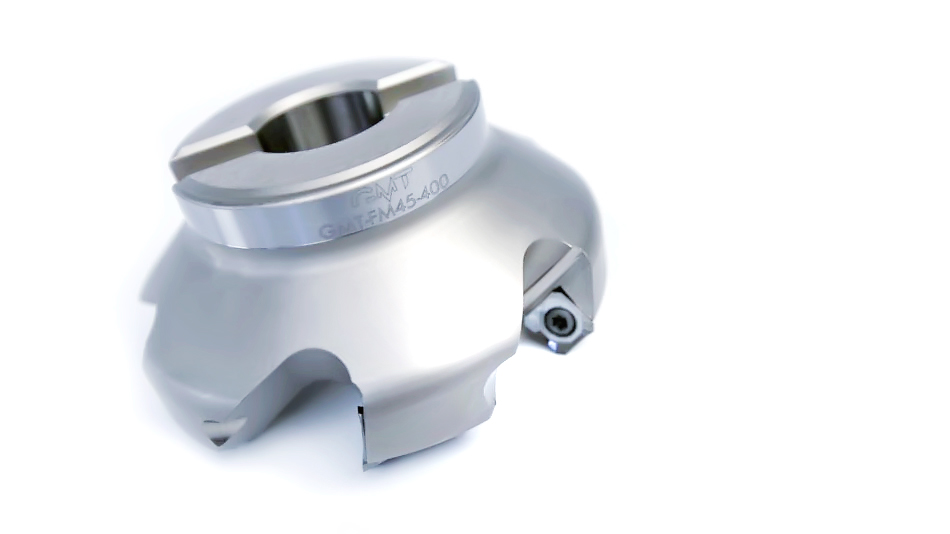

FM45-400
|
FM45 Facemill - 4in (100mm) |
PHOTO |
$149.99
|
IN STOCK |
|

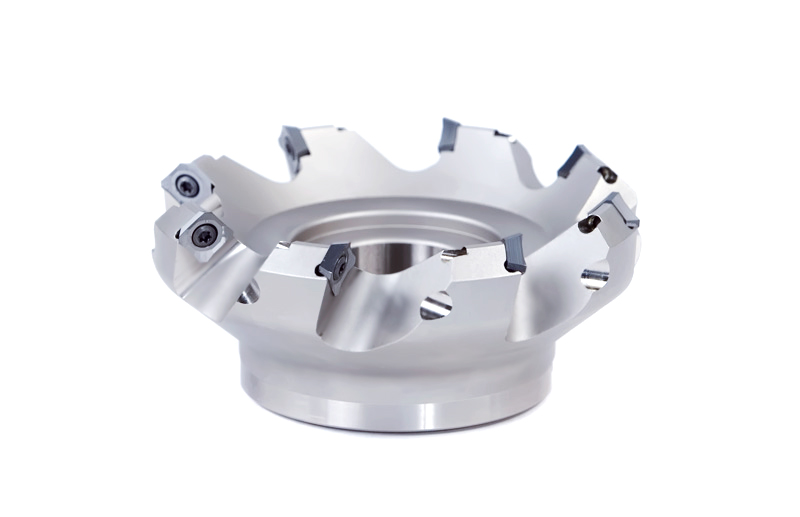

FM45-500
|
FM45 Facemill - 5in (125mm) |
PHOTO |
$129.99
|
IN STOCK |
|
CAT40-FM100-175T
|
Thru Coolant 1.00 Arbor |
PHOTO |
$119.99
|
IN STOCK |
|
CAT40-FM100-400
|
Facemill Holder - 1.00 Arbor, 4.0in |
PHOTO |
$103.99
|
IN STOCK |
|
R8-FM100
|
Facemill Holder - 1.00 Arbor |
PHOTO |
$139.99
|
IN STOCK |
|
BT40-FM100-175B
|
Facemill Holder - 1.00 Arbor Black Oxide |
PHOTO |
$99.99
|
IN STOCK |
|
NT40-FM100B
|
Facemill Holder - 1.00 Arbor Black Oxide |
PHOTO |
$139.99
|
IN STOCK |
|
CAT40-FM125-200
|
Facemill Holder - 1.25 Arbor, 2.0in |
PHOTO |
$99.99
|
IN STOCK |
|
CAT40-FM125-400
|
Facemill Holder - 1.25 Arbor, 4.0in |
PHOTO |
$103.99
|
IN STOCK |
|
R8-FM125
|
Facemill Holder - 1.25 Arbor |
PHOTO |
$139.99
|
IN STOCK |
|
BT40-FM125-175B
|
Facemill Holder - 1.25 Arbor Black Oxide |
PHOTO |
$99.99
|
IN STOCK |
|
NT40-FM125B
|
Facemill Holder - 1.25 Arbor Black Oxide |
PHOTO |
$139.99
|
IN STOCK |
|
CAT40-FM150-200
|
Facemill Holder - 1.50 Arbor, 2.0in |
PHOTO |
$99.99
|
IN STOCK |
|
NT40-FM150B
|
Facemill Holder - 1.50 Arbor Black Oxide |
PHOTO |
$139.99
|
IN STOCK |
|
Note: More facemill holders in CAT40, R8, BT40, BT30, and NT40 shanks available
HERE.
|
|
|
|
|
|

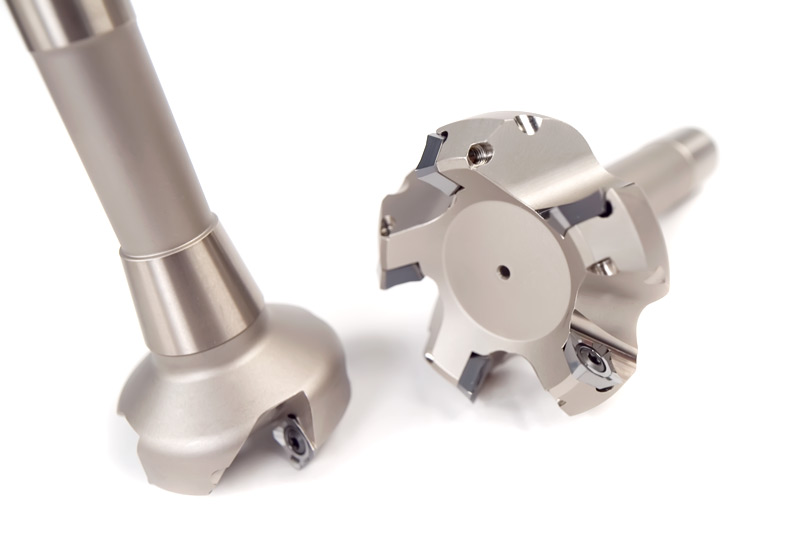

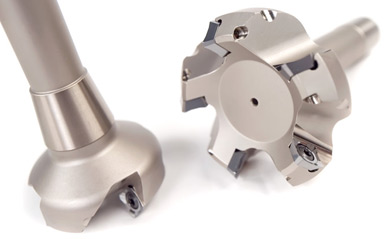

Our NEW integral shank FM45 facemills feature the same geometry as our cutter bodies, and in addition, include integral shanks for decreased gage length and
improved rigidity.
The R8-FM45-200 is ideal for low horsepower and benchtop machines. Two of the insert pockets can be left empty for minimal power consumption.
The R8-FM45-250 and R8-FM45-300 models are ideal for larger benchtop and Bridgeport style mills. Inserts sold separately.
Model |
Cut Dia |
Flutes |
Weight |
R8-FM45-200 |
50mm |
4 |
2.0 lbs |
R8-FM45-250 |
63mm |
5 |
2.5 lbs |
R8-FM45-300 |
80mm |
6 |
3.0 lbs |
|
|
|
|
|
|
|
|
R8-FM45-200
|
Integral Shank Facemill - 2in (50mm) |
PHOTO |
$149.99
|
IN STOCK |
|
R8-FM45-250
|
Integral Shank Facemill - 2.5in (63mm) |
PHOTO |
$179.99
|
IN STOCK |
|
R8-FM45-300
|
Integral Shank Facemill - 3in (80mm) |
PHOTO |
$239.99
|
IN STOCK |
|
|
|
|
|
|
|
Kennametal SEHW43-KC510M and Korloy SECA43-PC5300 and SEHT43-X83 carbide inserts with four cutting edges are available for FM45 facemills.
SECA43 Grade PC5300 - General purpose grade, excellent for both roughing and finishing of steels, aluminum, and cast iron. Coolant is optional.

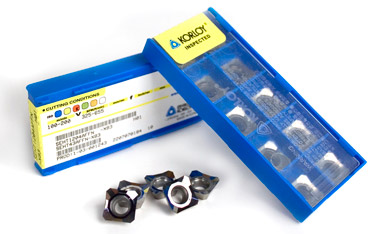

SEHT43 Grade X83 - Uncoated, polished, and ground. These high-positive inserts feature razor sharp edges for maximum productivity in
aluminum as well as other non-ferrous metals and plastics. Use with coolant for cutting aluminum.

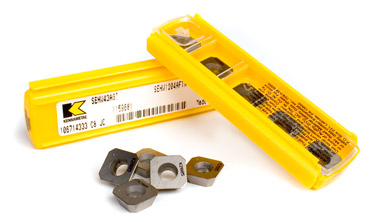

SEHW43 Grade KC510M - TiAIN coated (PVD) highly wear resistant grade. Great for use with hardened steels (HRC 55+) and can also be used for milling aluminum and high-temp alloys in light machining appliactions.
|
|
|
SECA43-PC5300
|
Korloy Inserts - Gen Purpose (10 pk) |
|
$149.99
|
IN STOCK |
|

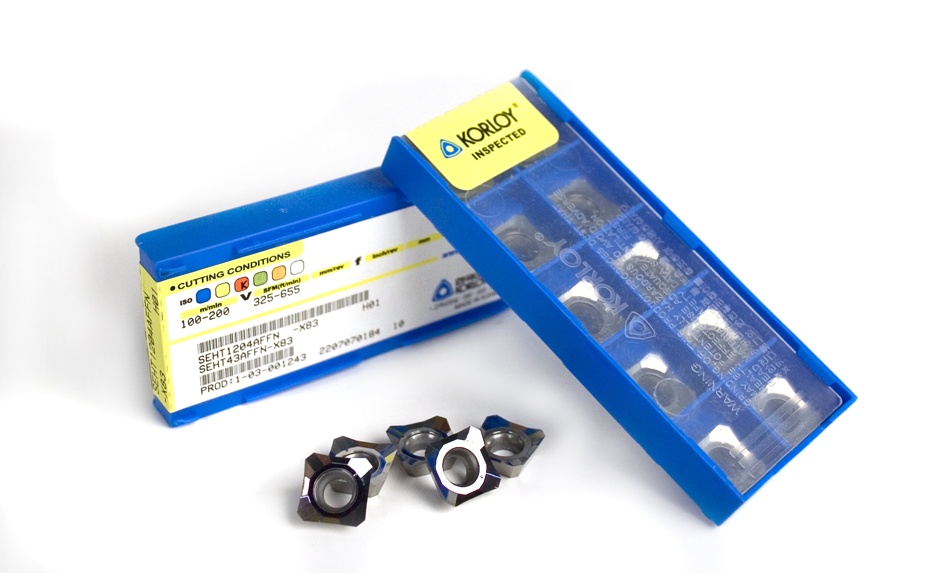

SEHT43-X83
|
Korloy Inserts - Aluminum (10 pk) |
PHOTO |
$179.99
|
IN STOCK |
|

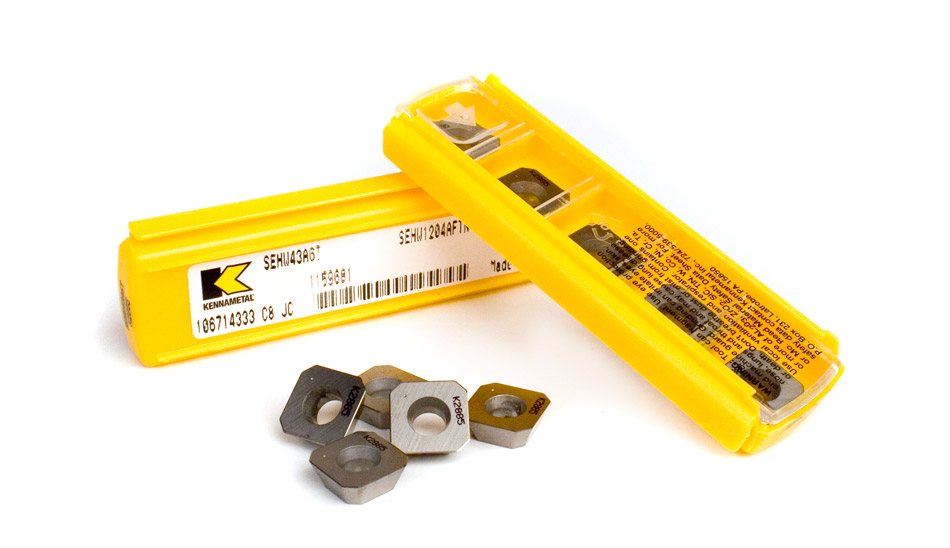

SEHW43-KC510M
|
Kennametal Inserts - HRC55+ (10 pk) |
PHOTO |
$239.99
|
IN STOCK |
|

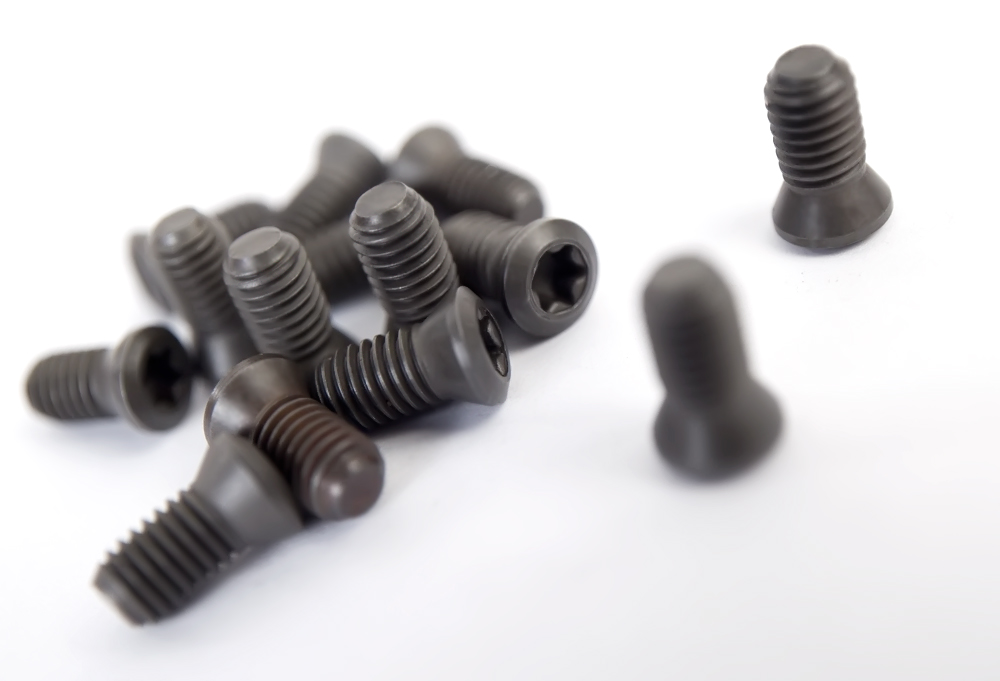

SEHW43-SCREW
|
Extra Facemill Screw for SE43 |
PHOTO |
$2.99
|
IN STOCK |
|
