GPV-615 Premium CNC Vise - V2

» Video: Product Spotlight on the GPV Premium Vise

Product Overview

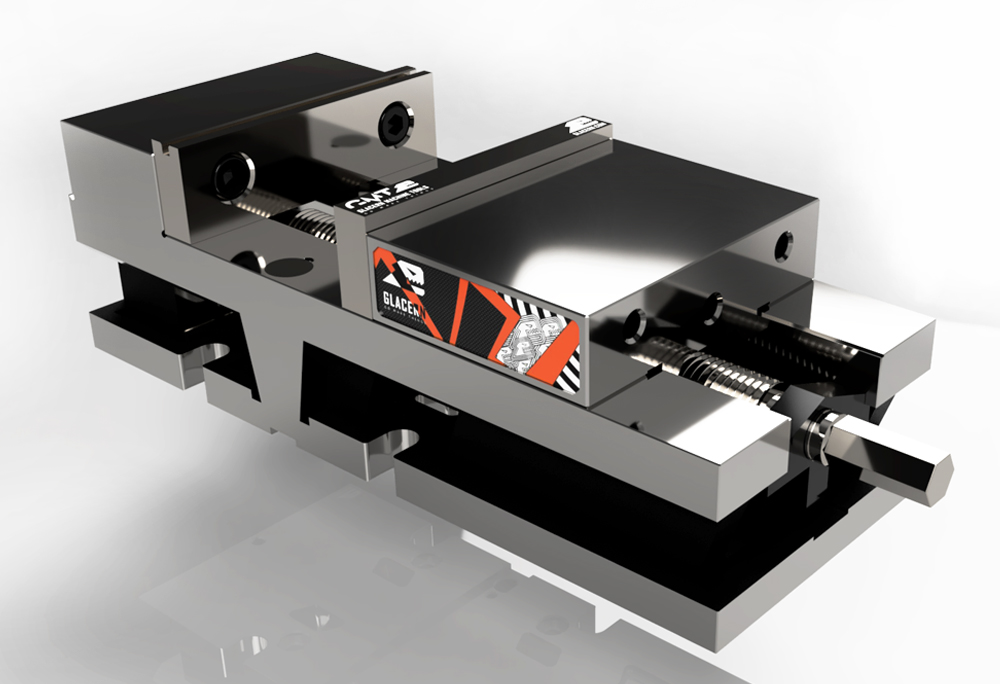

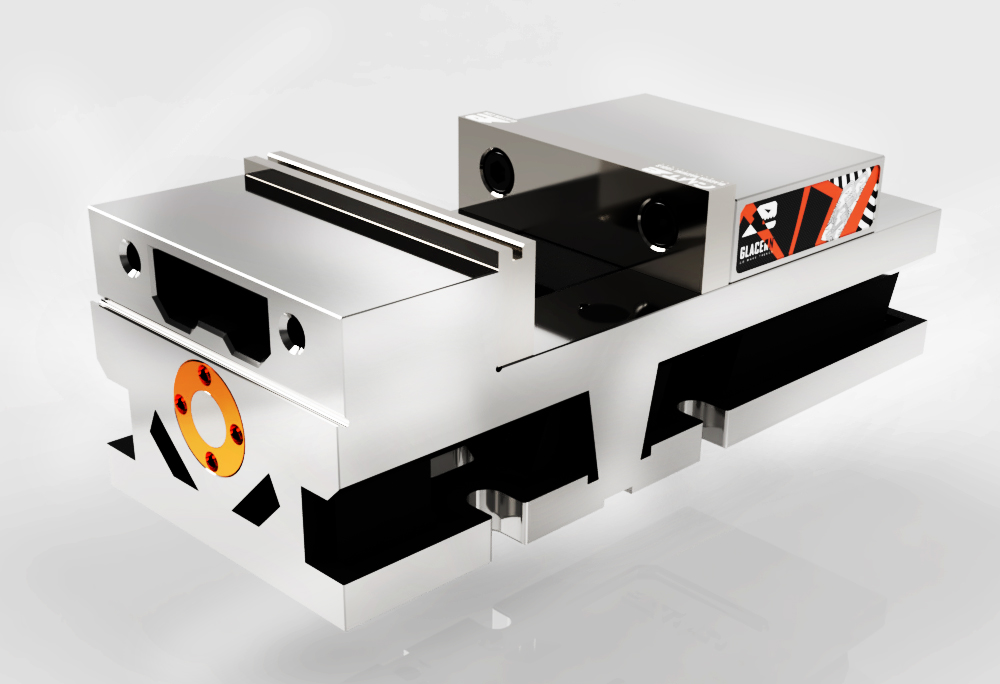

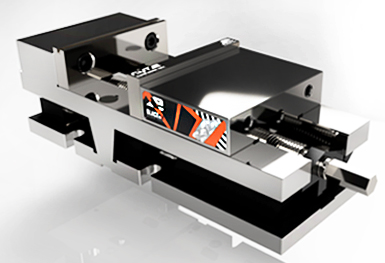

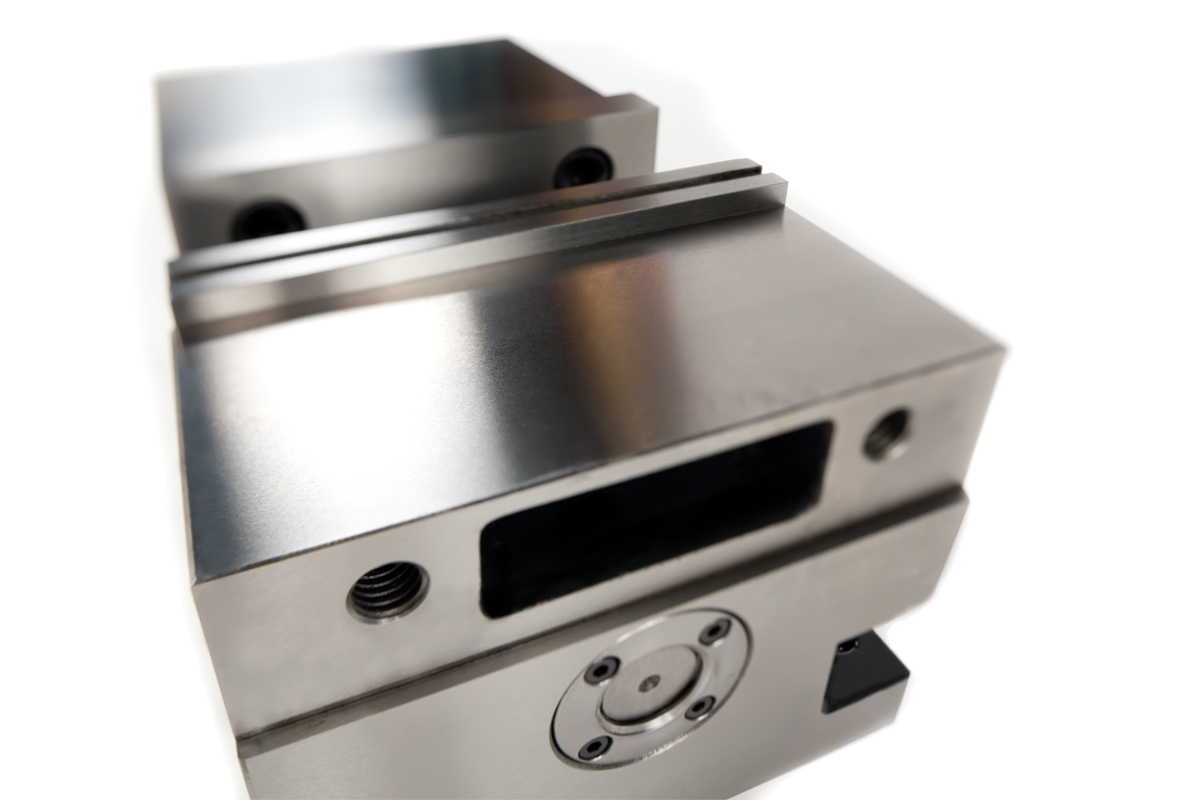

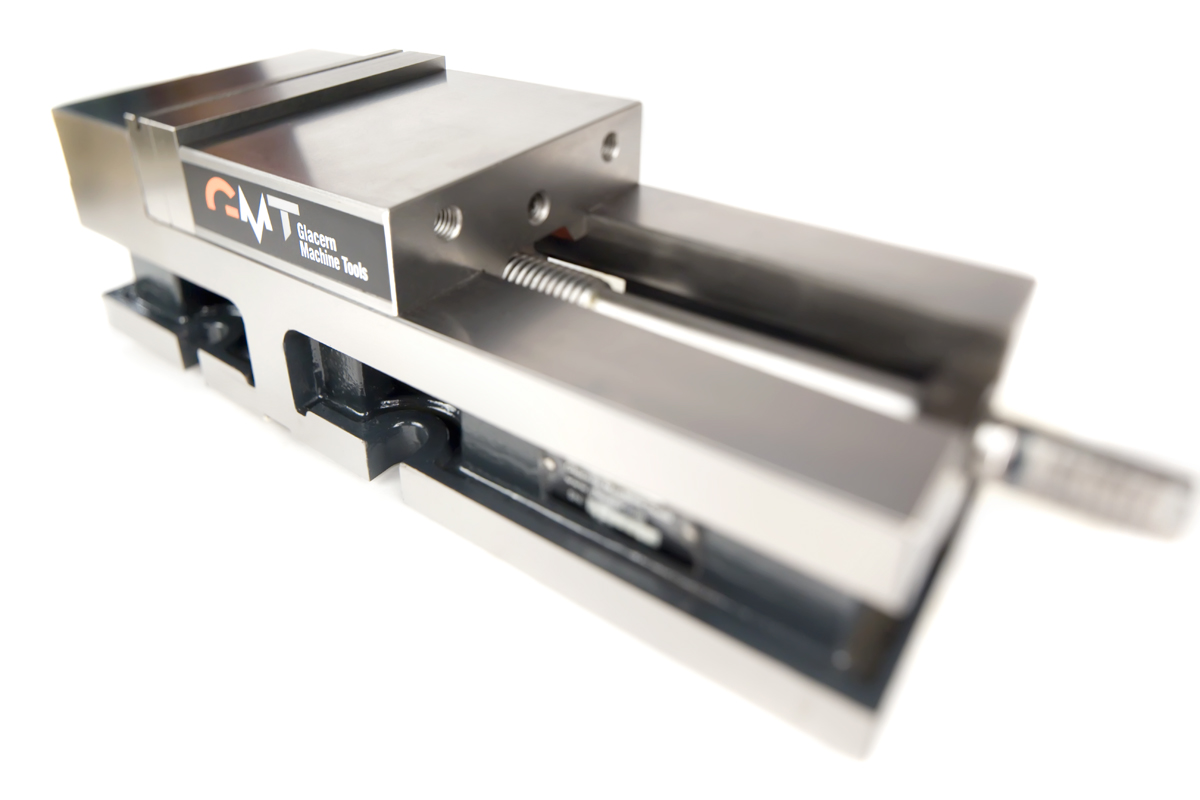

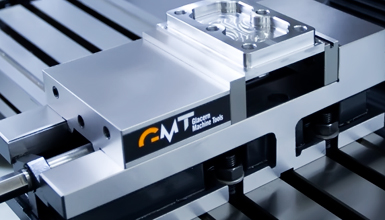

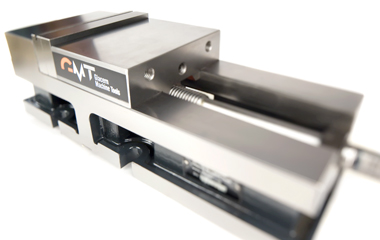

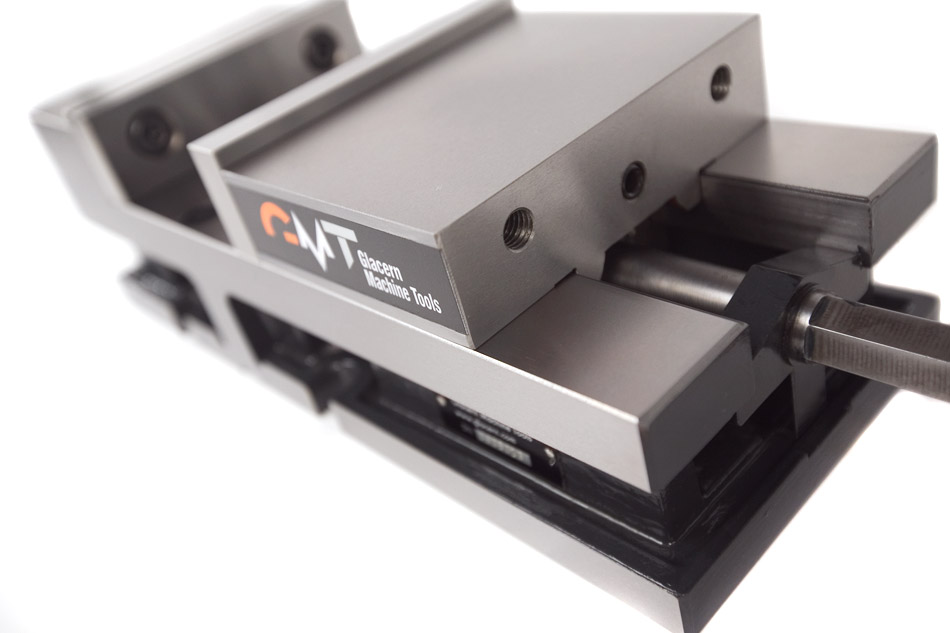

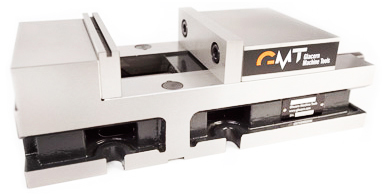

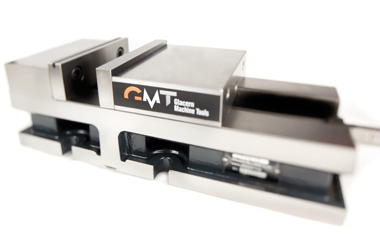

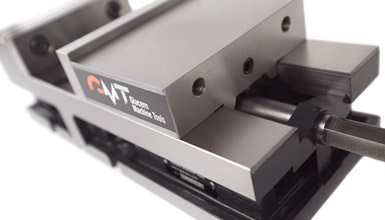

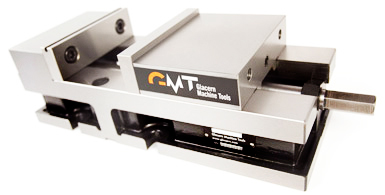

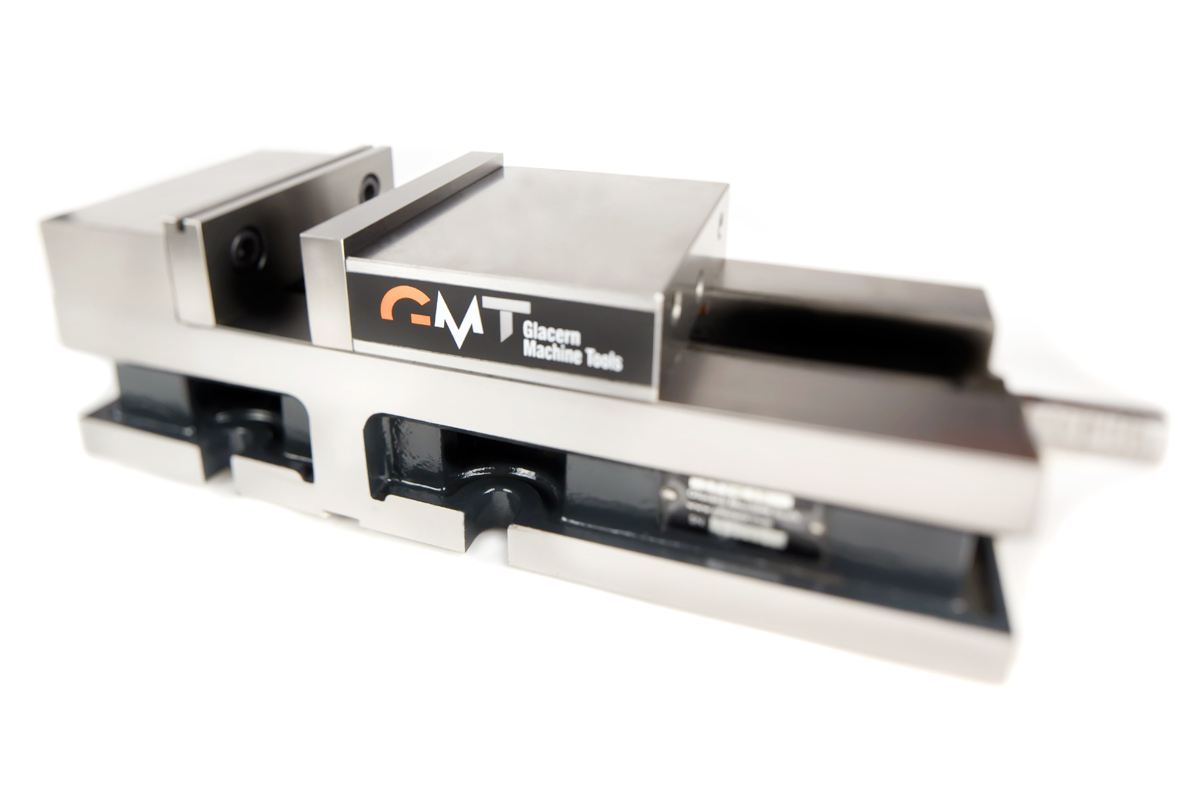

The Glacern GPV-615 premium machine vise features precision flat ground sides, allowing high density mounting as well as side mounting. Several mounting options are available with its four bolt flanges, perimeter flange, (2) counterbored thru holes, and RockLock compatibility. All these mounting variations allow for close proximity mounting to maximize bed usage. Fixed jaw plate comes equipped with a groove compatible with most aftermarket work stops. Includes a polished handle and 5/8 T-slot keys.

Running a Haas or a Tormach? All of our vises now come with 5/8" T-slot keys. If you'd like 11/16" instead, shoot us an email after you place your order online to let us know and we'll gladly swap sizes for free!

Key Features
  • New Upgraded Body Design
  • Machined Thru-Holes (2) for bolting to table

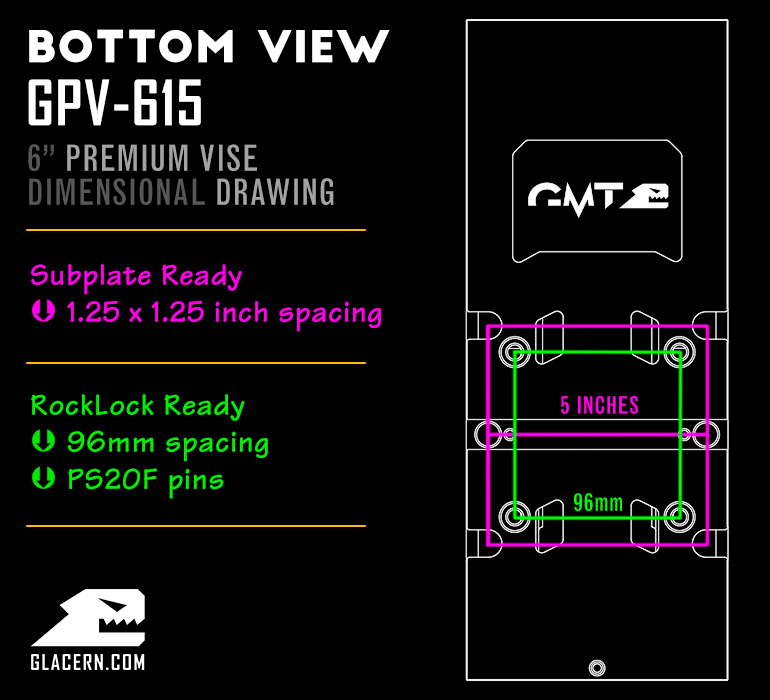

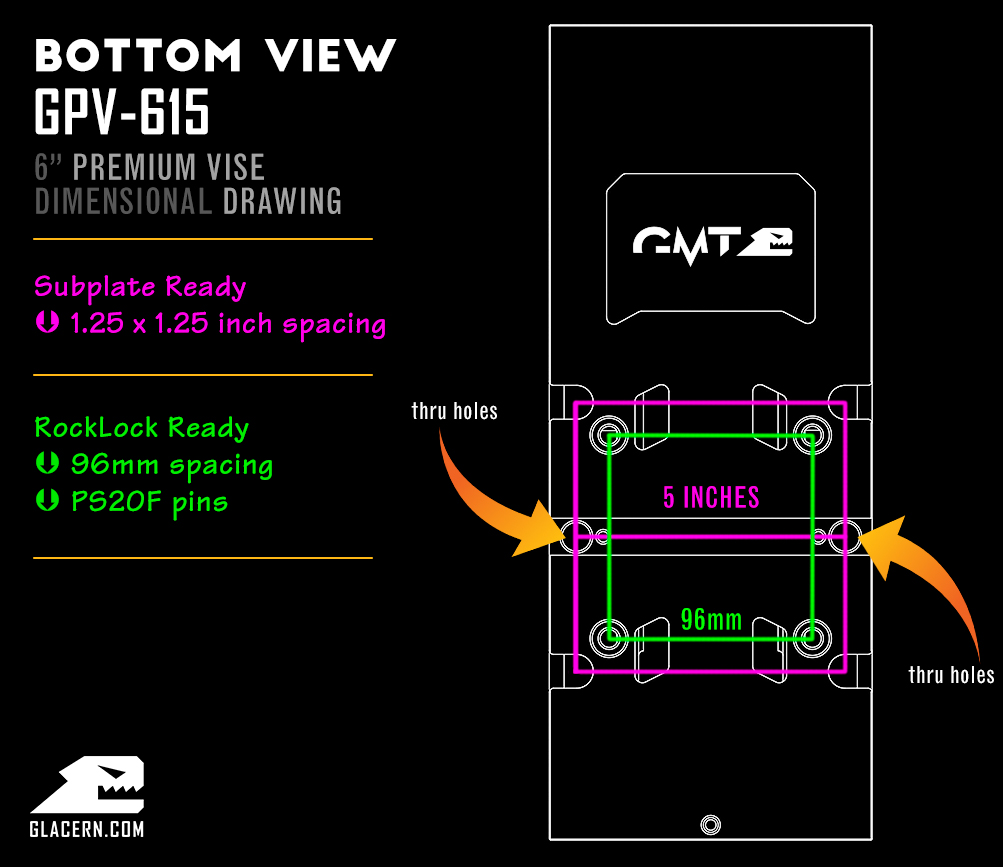

  • Subplate Ready (1.25 x 1.25 inch spacing)

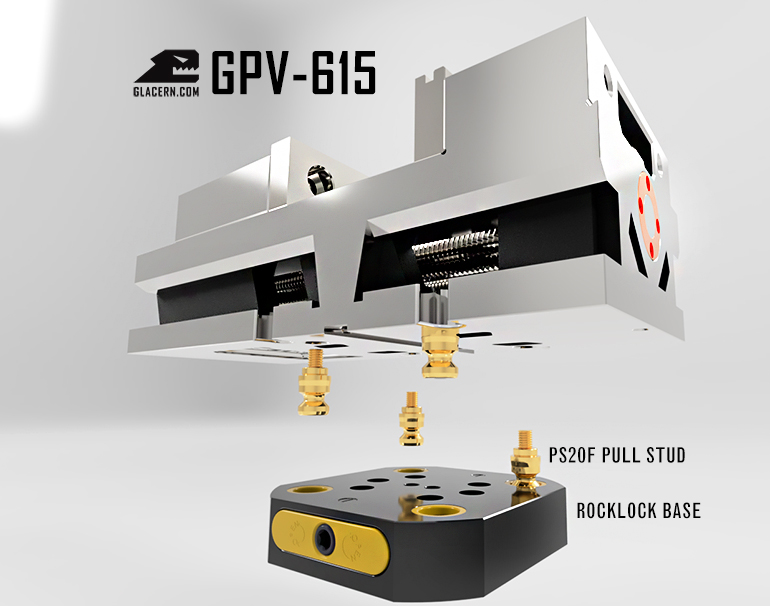

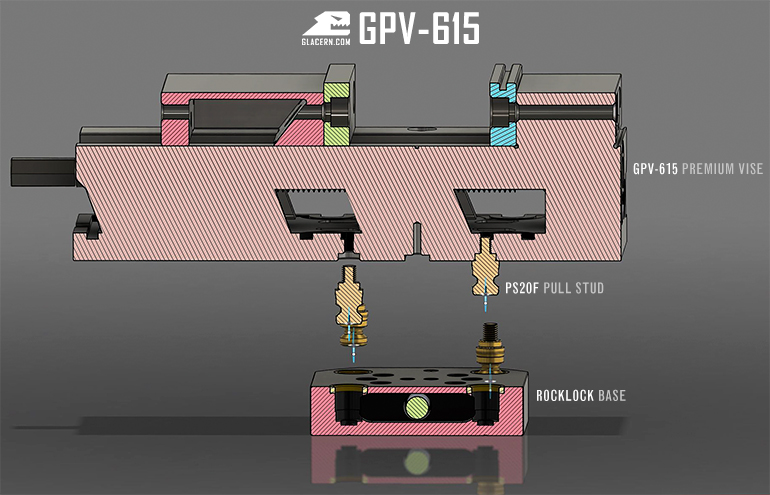

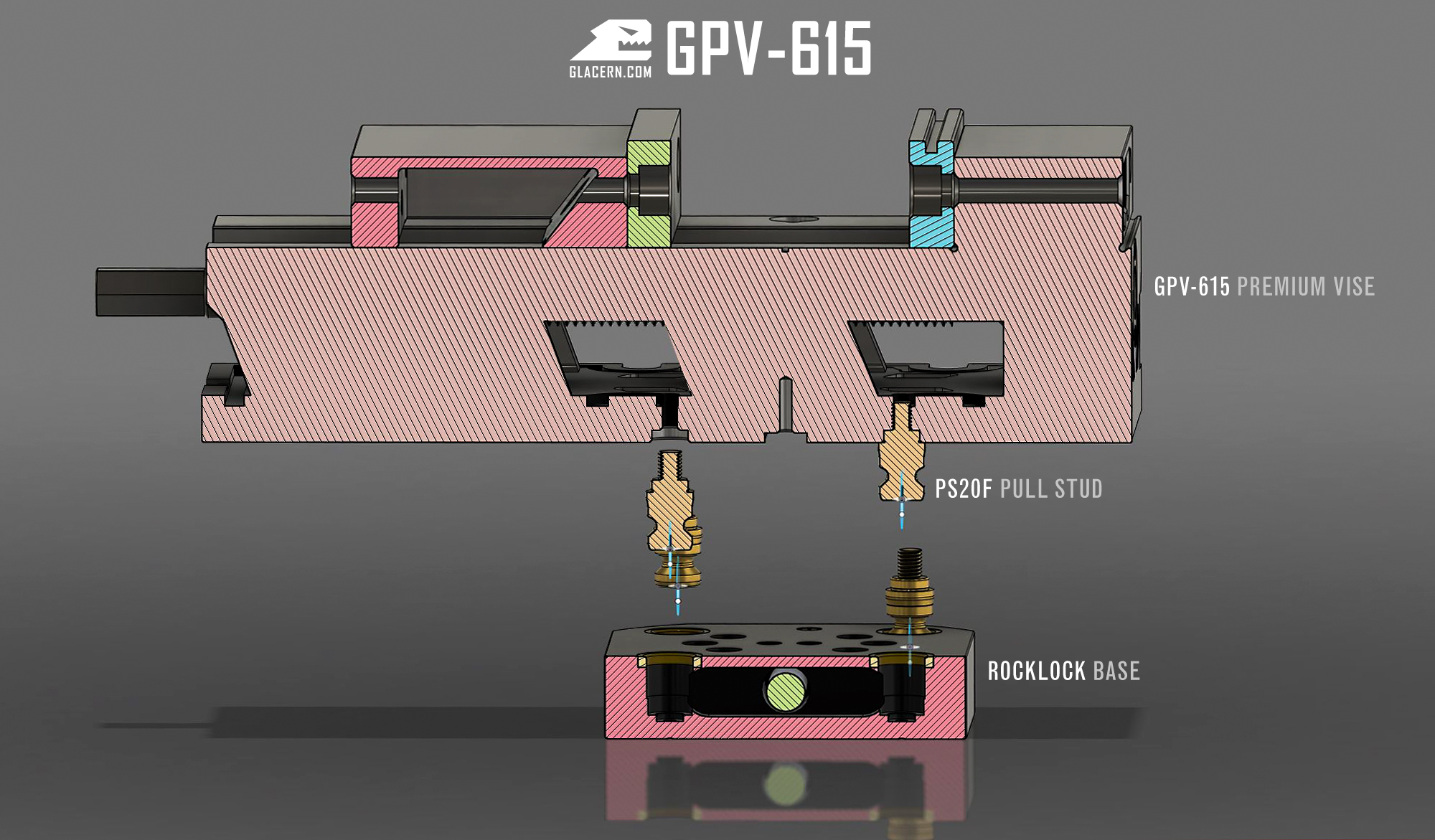

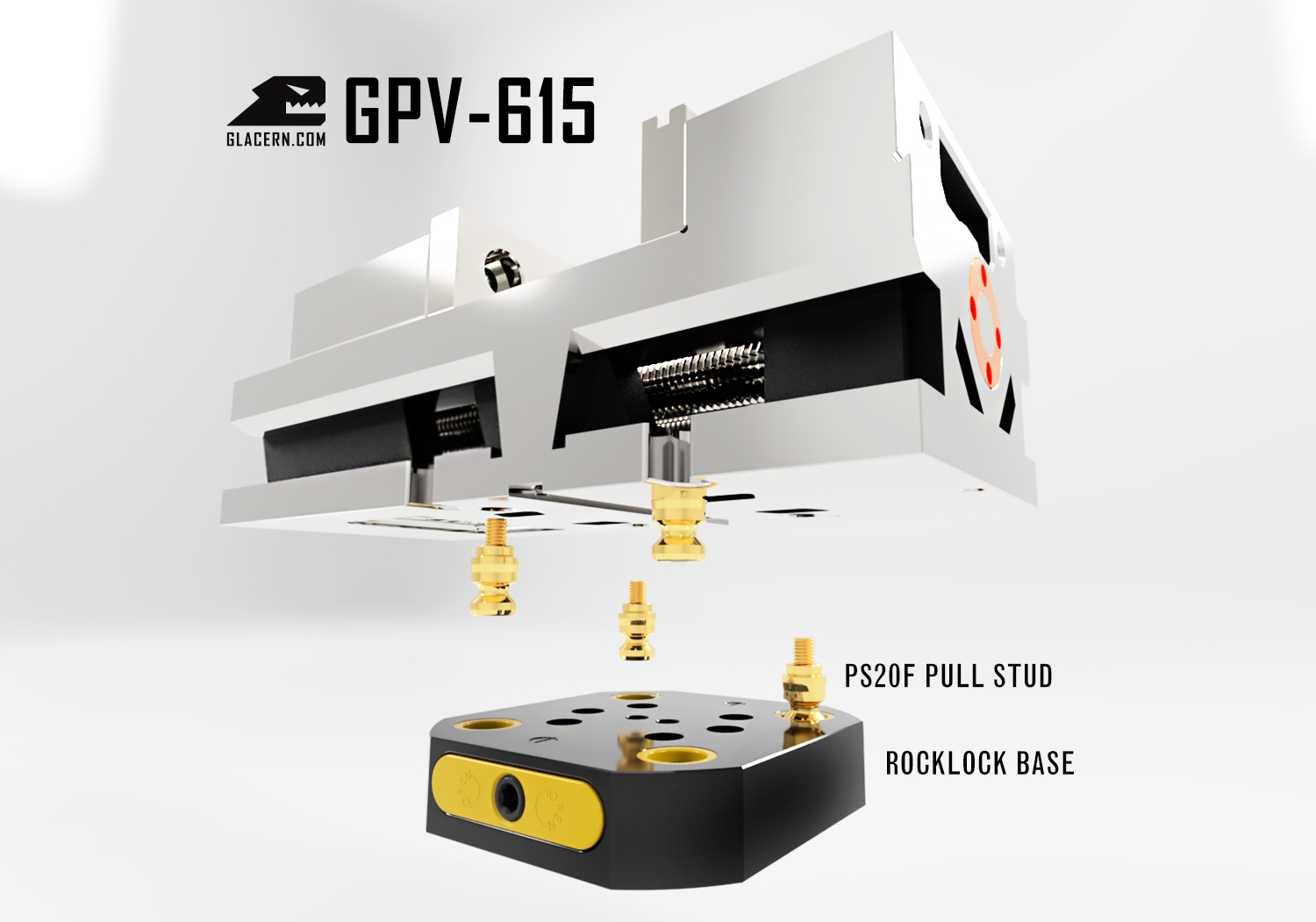

  • RockLock Ready (96mm spacing)

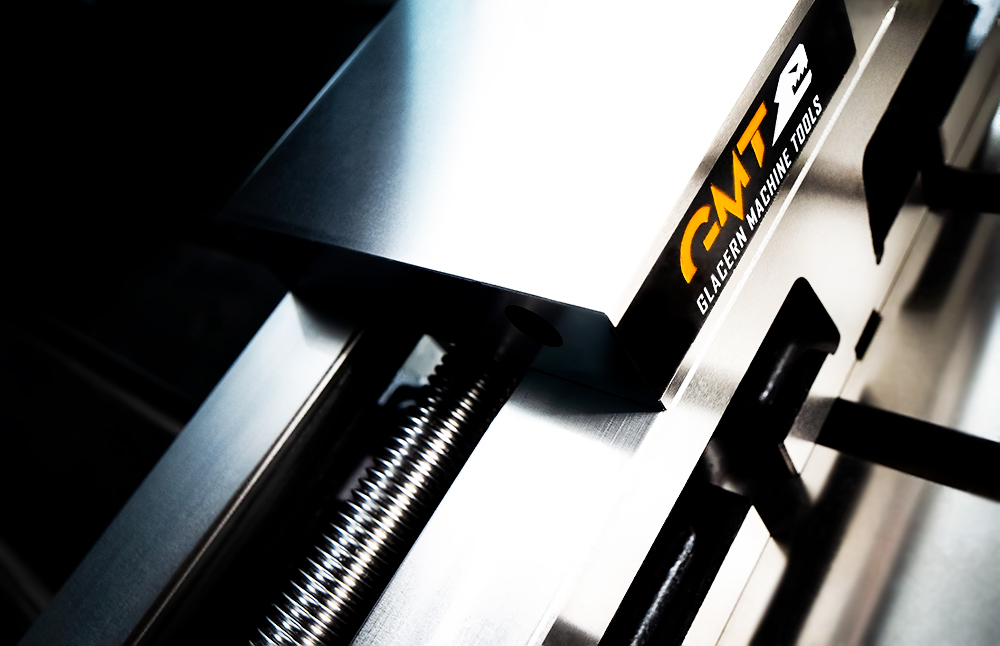

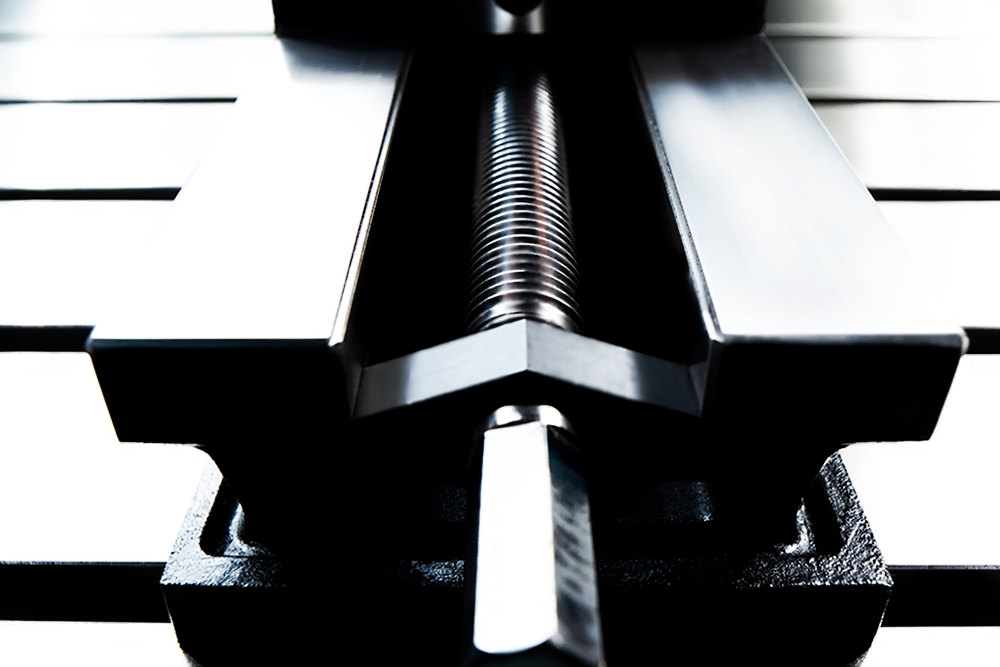

  • Fully Threaded Leadscrew, improved chip sealing
  • Fixed Jaw Integrated into Body, maximum rigidity
  • Ground Fixed Jaw back, for attaching outboard jaws

Construction
  • Precision ground sides, flip on side to clamp tall workpieces
  • 80,000 PSI stress-relieved ductile cast iron
  • Bed and jaw plates hardened to HRC 50
  • Anti jaw-lift with 45-degree wedge & hemisphere
  • Over 10,000 lbs max clamping force
  • Clamping repeatability of +/- 0.0002"

Specifications
  • 3.189" bed height
  • Bed heights matched with multiple cnc vise orders

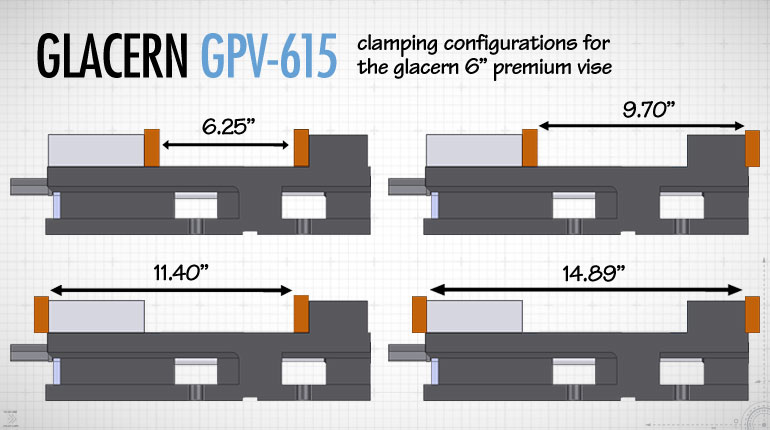

  • 6.25" capacity between the inner jaw plates
  • 14.89" capacity between the outer jaw plates
  • Industry-standard bolt hole pattern (3.875" x 0.9375")
  • 81 lbs shipping weight
  • Lifetime limited warranty

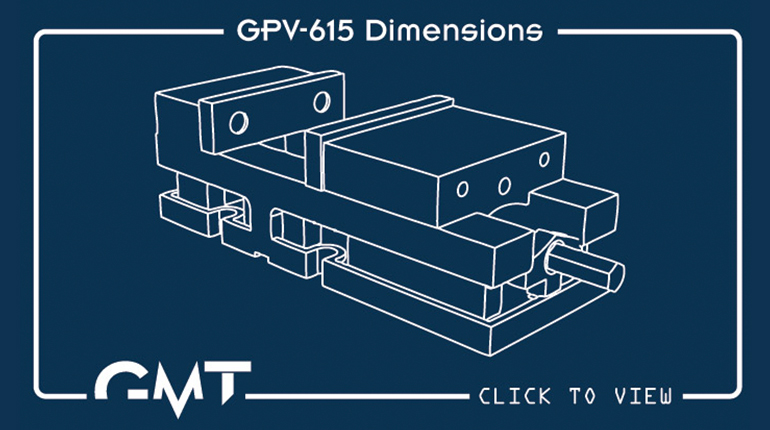

  • Click to view additional specs and dimensions below

Included Accessories
  • Polished Handle (3/4" hex)
  • 6" Hard Jaw Plates
  • 5/8" T-slot alignment keys (11/16" also available)
  • (4) T-slot mounting bolts & nuts
  • (4) Toe Clamps


Optional Accessories
  • Specialty Vise Jaws for 6" CNC vises
  • Speciality Speed Handles
  • Work Stop (compatible with 4" and 6" vises)
  • 6" Soft Jaws available in steel or aluminum (3 sizes)
  • Extra 6" hard jaw plates
  • Extra T-slot alignment keys
  • Click here to view all Glacern Vise Accessories
























GPV-615 6 Inch Premium CNC Vise - V2 Rocklock PHOTO $609.00 IN STOCK

6IN-VISE-PACK GPV-615, Chomper+Soft Jaws, Unicrank PHOTO $825.00 IN STOCK


Specialty Vise Jaws
GCJ-600 6-Inch Chomper Hard Jaws PHOTO $199.00 IN STOCK

OPJ-600 6-Inch OP Jaws Quick Change Set PHOTO $199.00 IN STOCK

GVJ-600 6-Inch Hardened Vee Jaw PHOTO $139.00 IN STOCK

GHJ-600-P 6-inch Original Hard Jaws (Pair) PHOTO $139.99 IN STOCK

GSJ-061020AL Soft Jaws - Al (6x1x2) Small PHOTO $79.00 IN STOCK

GSJ-061520AL Soft Jaws - Al (6x1.5x2) Medium PHOTO $99.00 IN STOCK

GSJ-062020AL Soft Jaws - Al (6x2x2) Large PHOTO $119.00 IN STOCK


Optional Vise Accessories
GAK-625ST 5/8 Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-6875 11/16 Inch T-Slot Keys PHOTO $49.99 IN STOCK

GAK-14mmST 14mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-18mmST 18mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GAK-22mmST 22mm Table to 11/16 Vise T-Slot Keys PHOTO $49.99 IN STOCK

GV6-HANDLE Extra Handle for 6-inch Vise PHOTO $59.99 IN STOCK

GV6-HANDLE-SPEED Speed Handle - 6 Inch Vise PHOTO $99.00 IN STOCK

GV6-STOP Work Stop for 4 and 6 Inch Vise PHOTO $149.99 IN STOCK

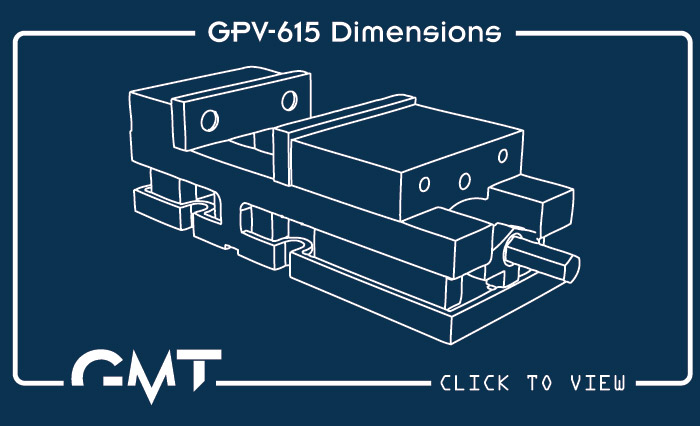

Technical Specifications & Dimensions
Material: 80,000 PSI Ductile Iron Bed Height: 3.189" +/- 0.0005"
Bed Hardness: HRC 50 Fixed Jaw to Bed: Perpendicular to 0.0005"
Jaw Plate Threads: 1/2"-13 UNC, 3.875" Spacing Fixed Jaw to Sides: Perpendicular to 0.0005"
Clamping Force: 10,000 lbs Fixed Jaw to Keyway: Parallel to 0.0005"
Overall Weight: 81 lbs Clamping Repeatability: +/- 0.0002"







Glacern T-Slot Alignment Key Size Chart
