SBR Supported Linear Rails and Ball Bearings
| Overview | ||||||
|

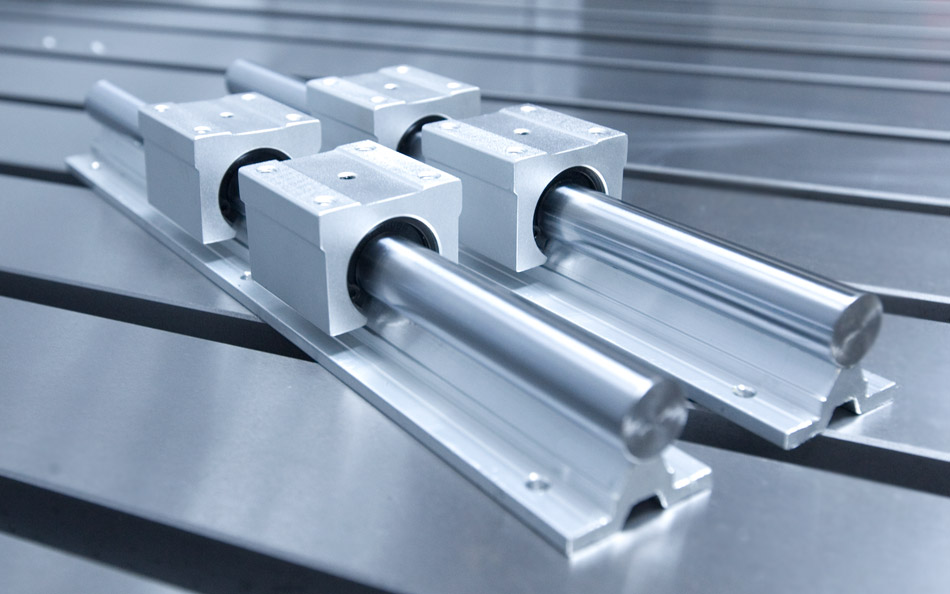

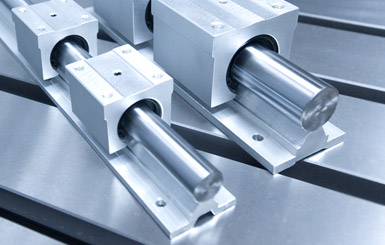

GMT SBR20 and SBR30 supported linear rails and ball bearing blocks are perfect for building professional quality CNC routers, CNC plasma cutters, positioning systems,
gantry robots, and other automated applications.
Compared to unsupported round rails, SBR rails provide drastically enhanced rigidity and resistance to deflection. They are also easier to install and are less prone to binding than rectangular-profile linear motion guides when they are mounted to surfaces that have not been precision machined, such as aluminum extrusions, steel tubes, and unsurfaced steel/aluminum plates. Rails and bearings conform to standard "SBR" metric dimensions and specifications, allowing them to be used in both new applications as well as existing installations. [ View Specs & Dimensions ] Constuction
|
|
|
||||
| SBR20-BLOCK | 20mm Linear Ball Bearing Block | [ Add to Cart ]
 |
||||
| SBR30-BLOCK | 30mm Linear Ball Bearing Block | [ Add to Cart ]
|
||||
| SBR20-340 | 20mm x 340mm Supported Linear Rail | [ Add to Cart ]
|
||||
| SBR20-640 | 20mm x 640mm Supported Linear Rail | [ Add to Cart ]
|
||||
| SBR20-940 | 20mm x 940mm Supported Linear Rail | [ Add to Cart ]
|
||||
| SBR30-1250 | 30mm x 1250mm Supported Linear Rail | [ Add to Cart ]
|
||||
| SBR30-1800 | 30mm x 1800mm Supported Linear Rail | [ Add to Cart ]
|
||||

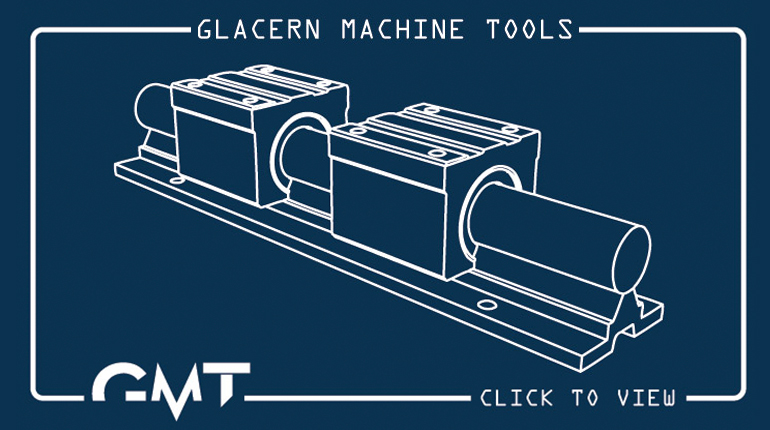

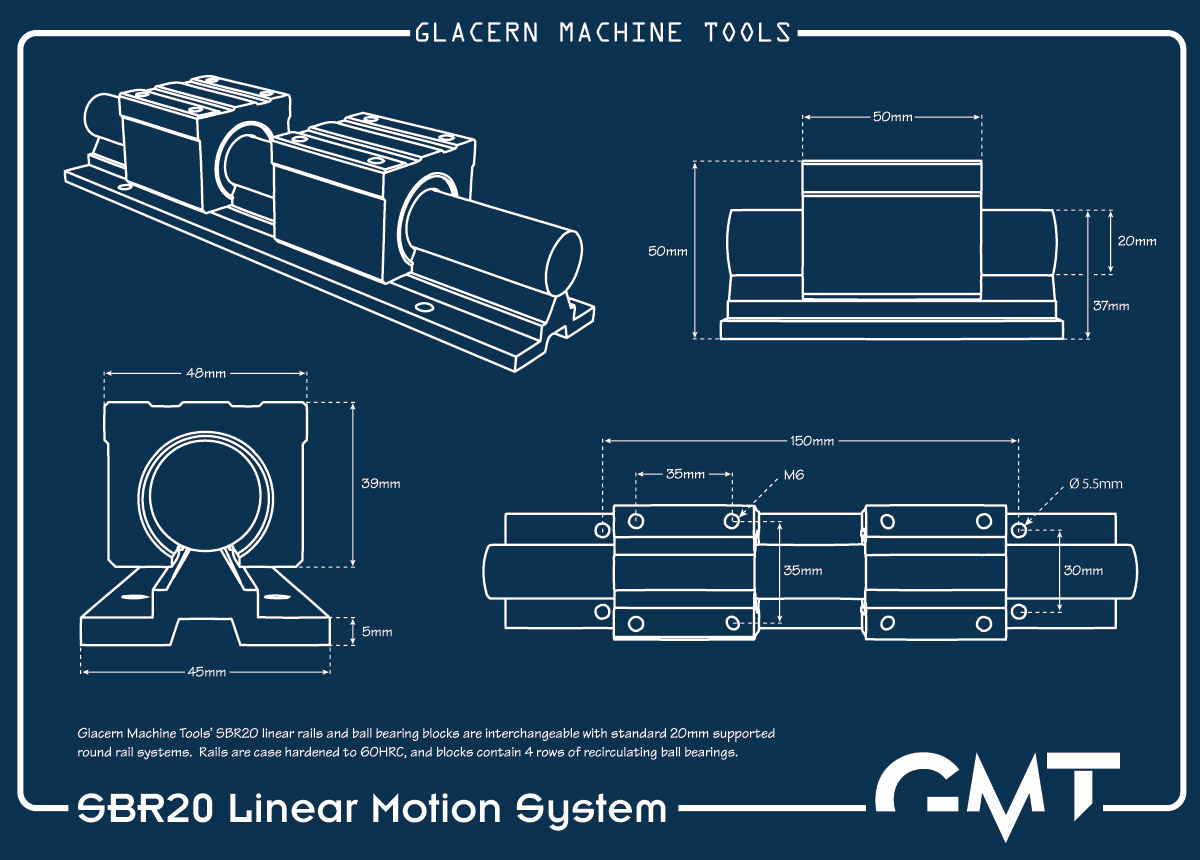

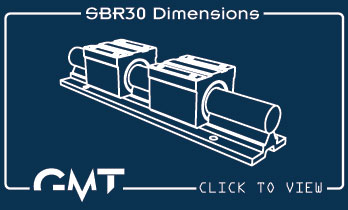

| SBR20 Specs & Dimensions | SBR30 Specs & Dimensions | |||
| Rail Diameter: | 20mm | Rail Diameter: | 30mm | |
| Static Load Rating: | 375 lbs force per block | Static Load Rating: | 680 lbs force per block | |
|
|
|||
| [ Right Click to Save ] | [ Right Click to Save ] | |||
