Glacern Milling Chucks

Product Overview
For serious milling jobs, Glacern Milling Chucks have up to five times the gripping power of traditional collet chucks and are incredibly rigid and highly accurate. Our unique vibration-reducing design makes this tool a perfect fit for roughing, finishing, and even hardmilling. Integrated needle bearings provide up to 140% more bearing surface than traditional designs and assure powerful and distortion free clamping, even under heavy milling. Our chucks undergo a sub-zero cryogenic treatment which prevents deformation over time.

Nickel-plated and hardened to 55 HRC. The taper and critical surfaces are precision ground to a TIR of less than 0.0002" with a 0.00015 concentricity at the collet bore.

MC75 holders have a 0.750" max capacity, come with a spanner wrench included, and are compatible with the following step-down collets:
  • MC75-1/8, 3/16, 1/4, 3/8, 1/2, 5/8 Inch


MC125 holders have a 1.250" max capacity, come with a spanner wrench included, and are compatible with the following step-down collets:
  • MC125-1/4, 3/8, 1/2, 5/8, 1.0 Inch


Features
  • Powerful clamping for heavy cutting
  • Supports heavy and finish end milling with high precision
  • Superior clamping pressure over ER Collet Chucks & Endmill Holders
  • Thick wall on a clamping part prevents chattering
  • Fine narrow slots clamp the tool shank evenly & eliminate oil that spoils clamping torque
  • Electroless Nickel Plated Finish
  • Precision ground surfaces
  • Concentricity < 0.0004" at 4xD
  • Tapers and flange hardened to 55 HRC
  • Rear thread for pull stud 5/8-11 UNC
  • All CAT40 chucks balanced to G2.5 @ 20,000RPM


CAT40 Milling Chucks - Electroless Nickel

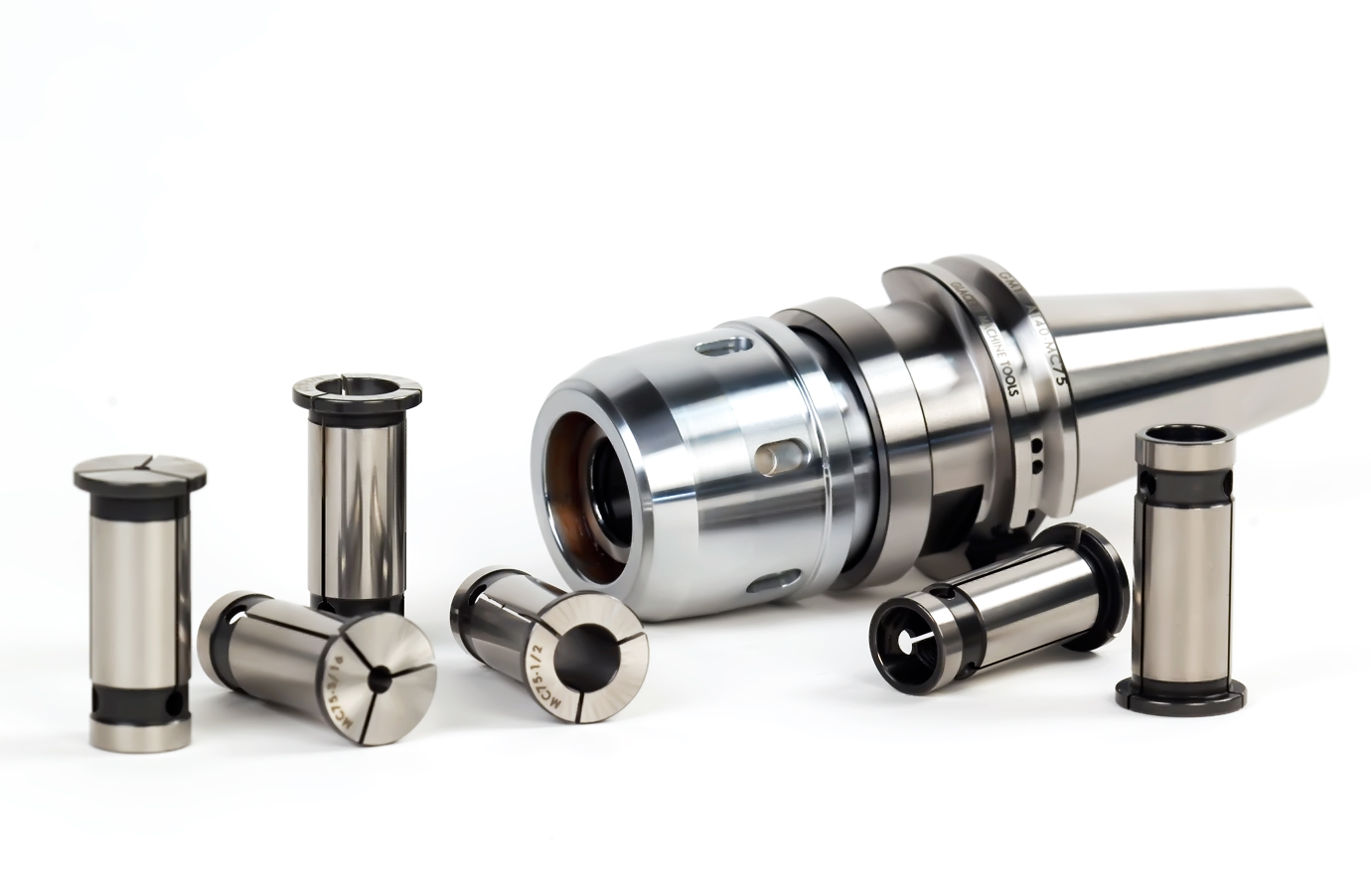

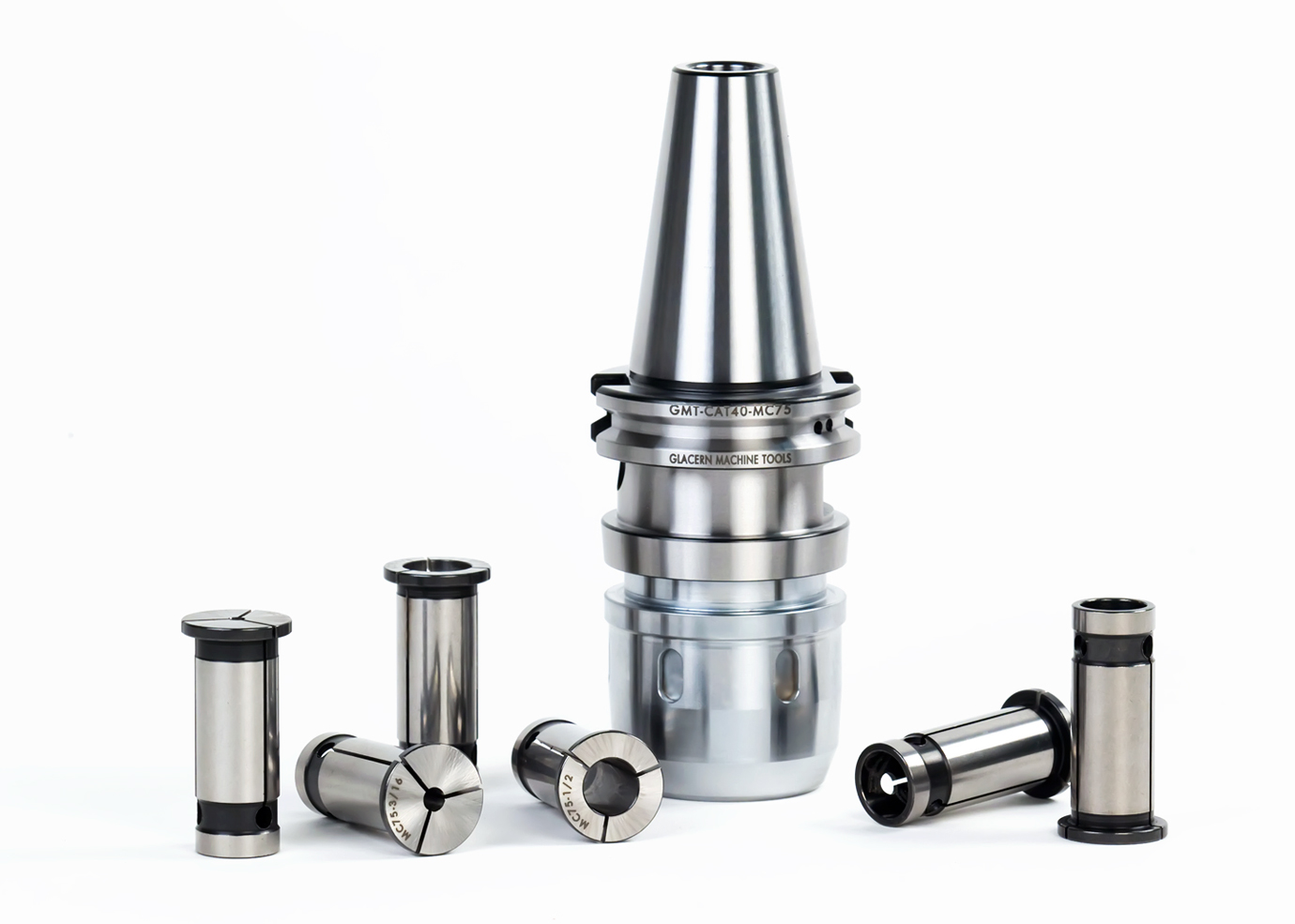

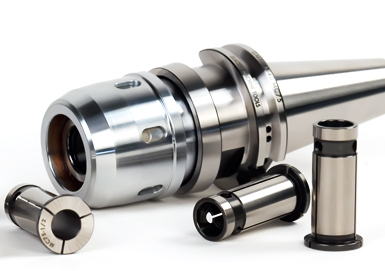

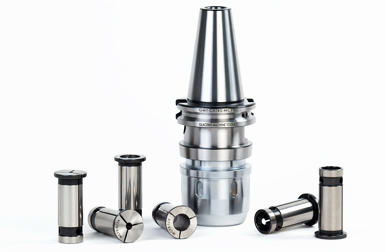

CAT40-MC75 Milling Chuck, 0.75-inch bore PHOTO $199.99 IN STOCK

CAT40-MC125 Milling Chuck, 1.25-inch bore PHOTO $199.99 IN STOCK

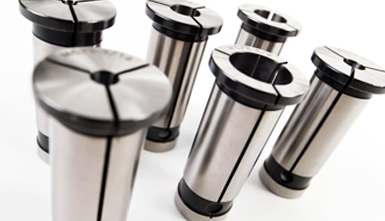

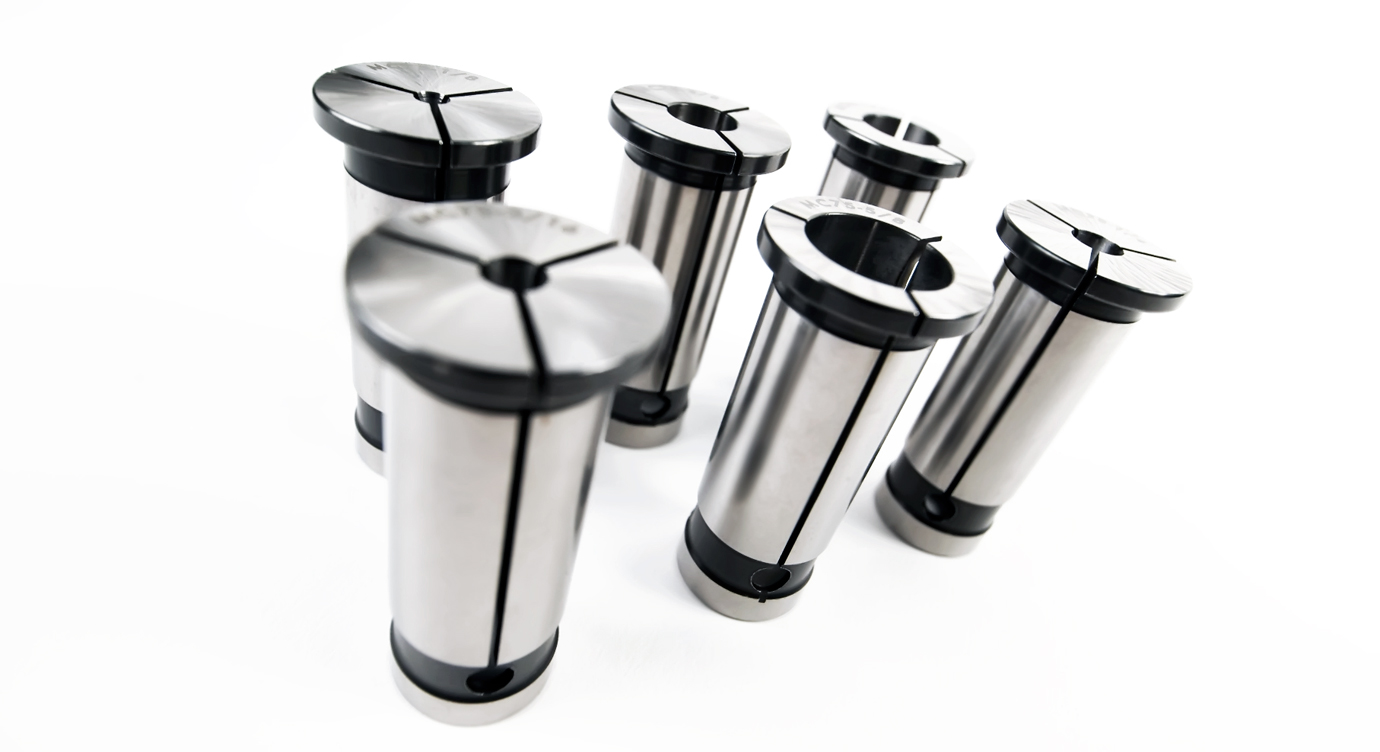

MC75 Milling Chuck Collets
MC75-1/8 MC75 Collet $29.99 IN STOCK

MC75-3/16 MC75 Collet $29.99 IN STOCK

MC75-1/4 MC75 Collet $29.99 IN STOCK

MC75-3/8 MC75 Collet $29.99 IN STOCK

MC75-1/2 MC75 Collet $29.99 IN STOCK

MC75-5/8 MC75 Collet $29.99 IN STOCK


MC125 Milling Chuck Collets
MC125-1/4 MC125 Collet $29.99 IN STOCK

MC125-3/8 MC125 Collet $29.99 IN STOCK

MC125-1/2 MC125 Collet $29.99 IN STOCK

MC125-5/8 MC125 Collet $29.99 IN STOCK

MC125-3/4 MC125 Collet $29.99 IN STOCK

MC125-1 MC125 Collet $29.99 IN STOCK
