GMT Facemill Holders

Product Overview

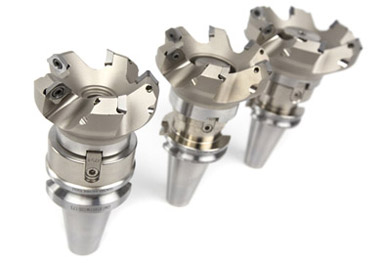

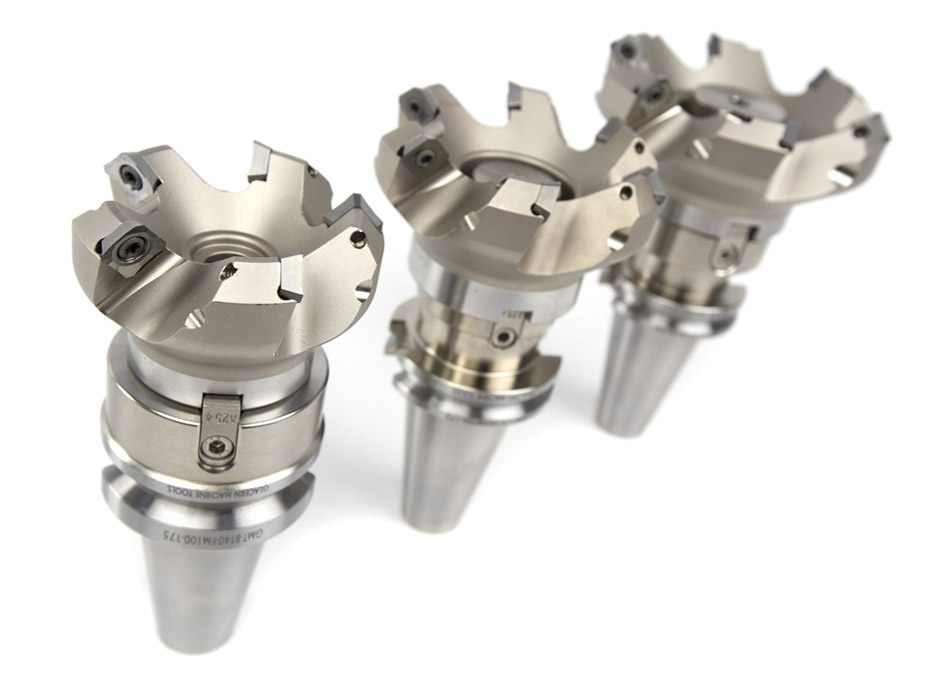

Facemill holders, also known as shell mill holders, consist of an arbor and a pair of bolt-on drive keys to securely hold cutter bodies such as our FM45 and FM90 indexable facemills.

Our nickel-plated facemill holders are hardened to 55 HRC. The arbor and mating face are precision ground to a TIR of less than 0.0002".

FM100 holders have a 1.000" arbor diameter and are compatible with the following facemills:

Note: When using the FM100 facemill holder with the FM45-250 facemill remove the center washer, which is only meant to be used in conjunction with the FM45-300 (slightly larger version).


FM125 holders have a 1.250" arbor diameter and are compatible with the following facemills:

FM150 holders have a 1.500" arbor diameter and are compatible with the following facemills:

CAT40 Facemill Holders - Electroless Nickel

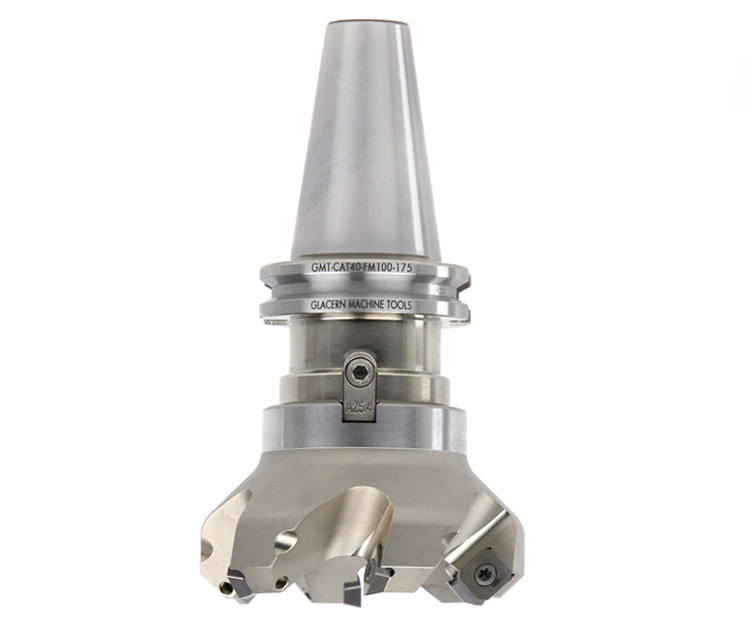

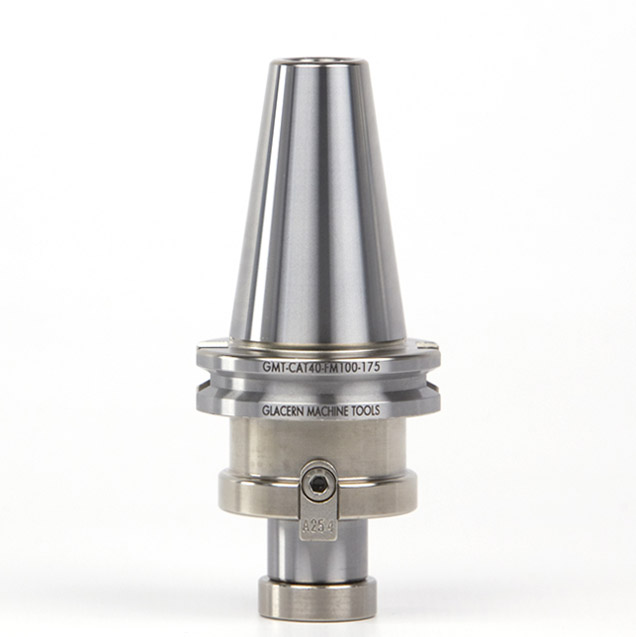

CAT40-FM100-175 Facemill Holder - 1.00 Arbor, 1.75in PHOTO $99.99 IN STOCK

CAT40-FM100-400 Facemill Holder - 1.00 Arbor, 4.0in PHOTO $99.99 IN STOCK

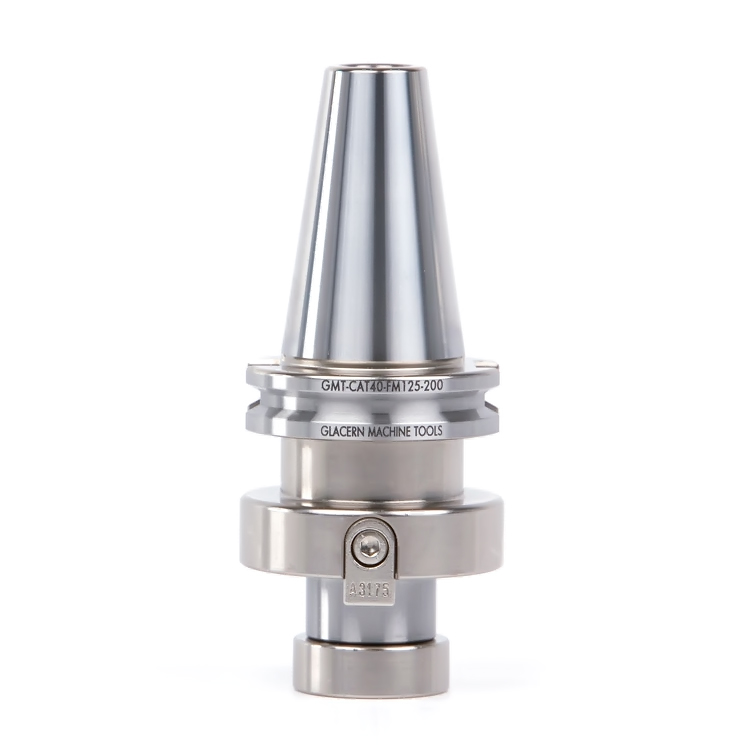

CAT40-FM125-200 Facemill Holder - 1.25 Arbor, 2.0in PHOTO $79.99 IN STOCK

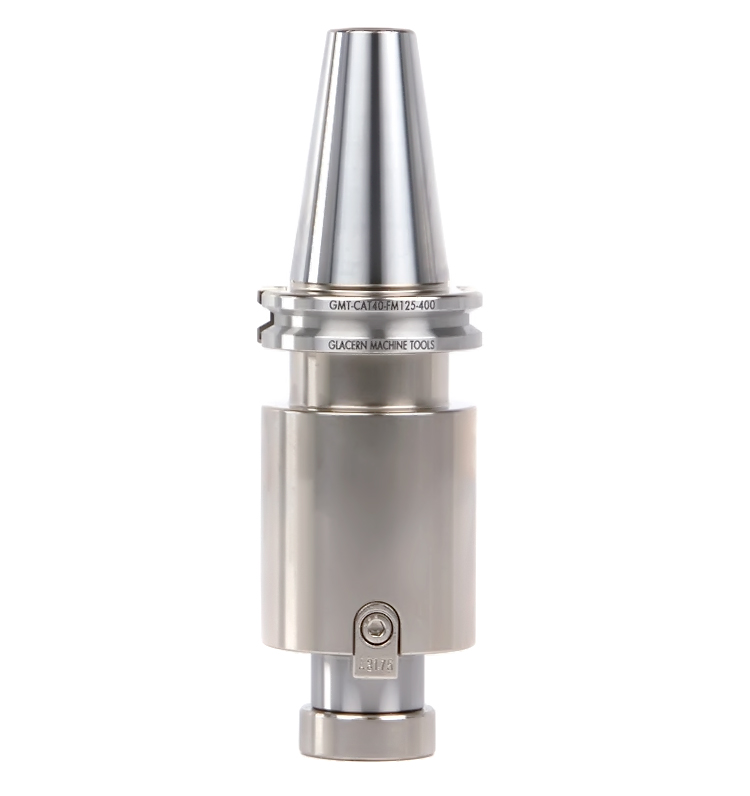

CAT40-FM125-400 Facemill Holder - 1.25 Arbor, 4.0in PHOTO $99.99 IN STOCK

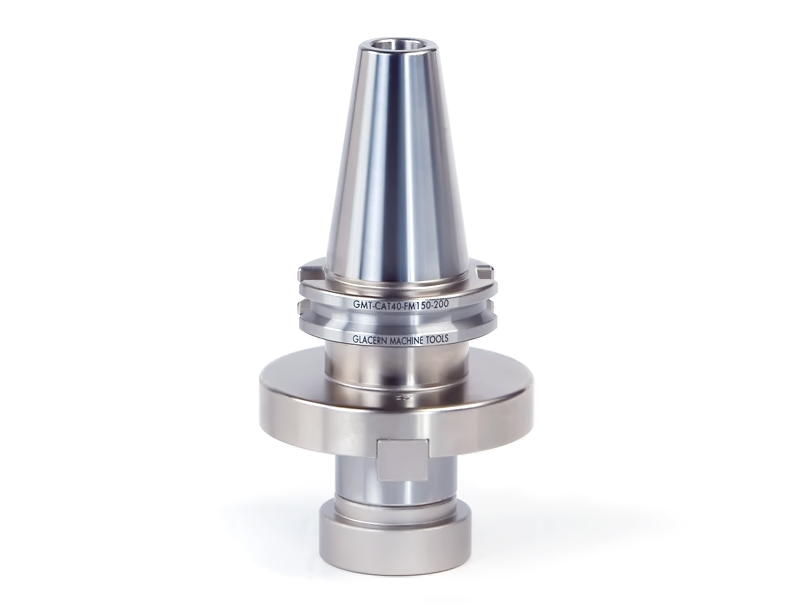

CAT40-FM150-200 Facemill Holder - 1.50 Arbor, 2.0in PHOTO $99.99 IN STOCK


BT30 / BT40 Facemill Holders - Electroless Nickel
BT30-FM100-175B Facemill Holder - 1.00 Arbor, 1.75in PHOTO $69.99 IN STOCK

BT40-FM100-175B Facemill Holder - 1.00 Arbor Black Oxide PHOTO $119.99 IN STOCK

BT40-FM125-175B Facemill Holder - 1.25 Arbor Black Oxide PHOTO $119.99 IN STOCK


R8 / NMTB40 Facemill Holders - Electroless Nickel
R8-FM100 Facemill Holder - 1.00 Arbor PHOTO $89.99 IN STOCK

R8-FM125 Facemill Holder - 1.25 Arbor PHOTO $89.99 IN STOCK

NT40-FM100B Facemill Holder - 1.00 Arbor Black Oxide PHOTO $89.99 Out of Stock *
